Description

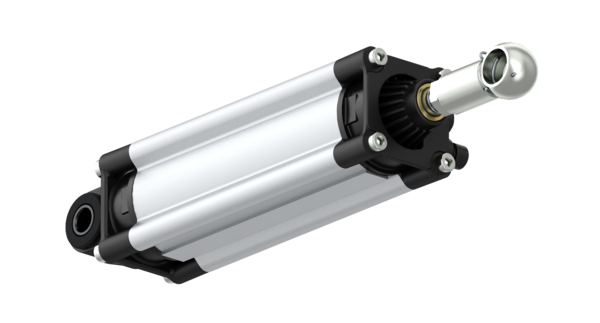

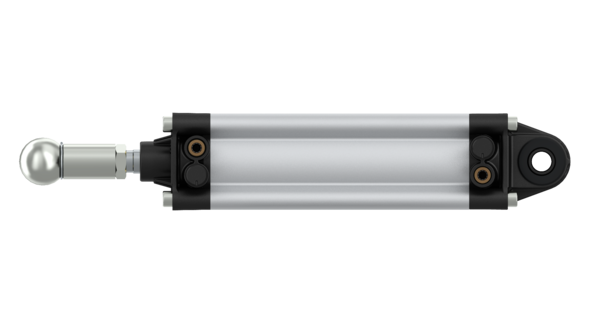

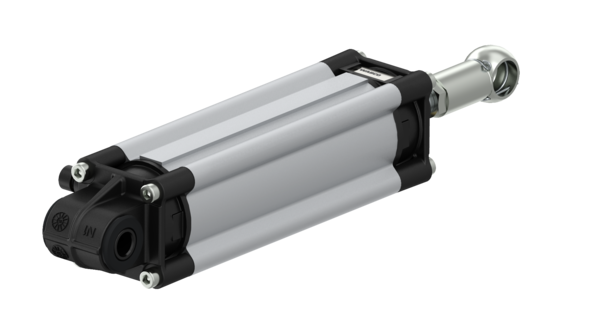

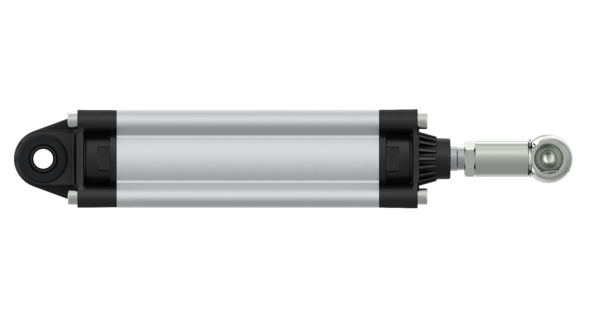

Door Operating Cylinder
Part Number: 4228140030
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 1.814 |
| Length | 310 mm |
| Max. operating pressure | 10.0 bar |
| Piston diameter | 26 mm |
| Port thread 1 | Quick Connection Ø 6 mm |
| Port thread 2 | Quick Connection Ø 6 mm |
| Product category | Device |
| Push-rod thread | Ball socket B-19 with snap ring (DIN 71805) |
| Stroke | 140.0 mm |
| Technical specification | OE specification |
| Temperature range | -25°C to 80°C |
| GTIN | 04057875444275 |
| Size (mm x mm x mm) | 347 x 63 x 83 |
| UPC | 193133400301 |
| Weight (kg) | 1.511 |
| Weight (lb) | 3.331 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A0007604805 |
