Description

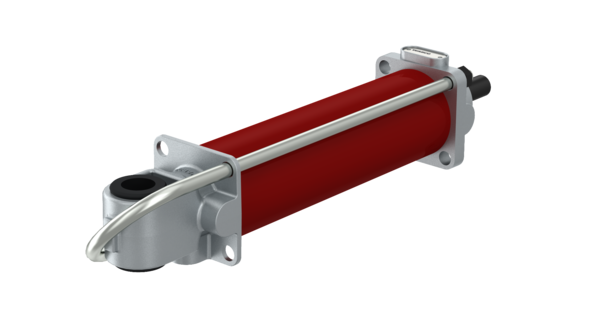

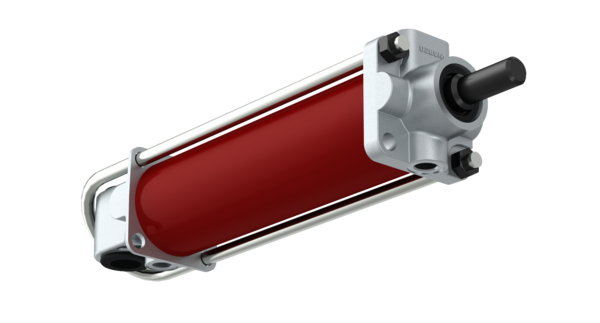

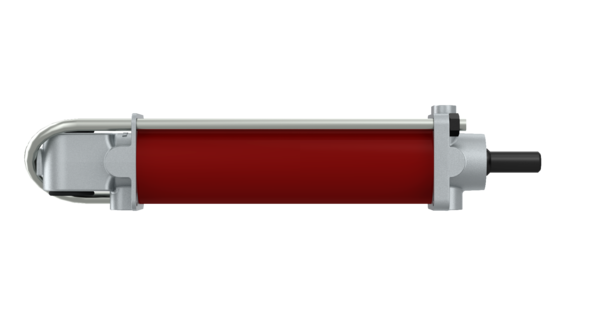

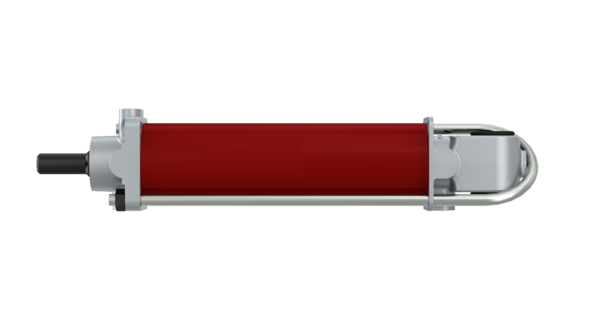

Door cylinder
Part Number: 4228120020
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Body | 63 x 63 mm |
| Calculated Volume (dm³) | 1.4166 |
| Length | 308 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | Ø 18 mm |
| Piston diameter | 26 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Product category | Device |
| Push-rod thread | M14 x 1.5 |
| Stroke | 160.0 mm |
| Technical specification | OE specification |
| Temperature range | -25°C to 80°C |
| Thread | M14 x 1.5 |
| Type | Ø 50 x 160 mm |
| GTIN | 04057875161165 |
| Size (mm x mm x mm) | 336 x 62 x 68 |
| UPC | 193133244011 |
| Weight (kg) | 2.088 |
| Weight (lb) | 4.6032 |
OEM Cross References
| Brand | Reference No |
|---|---|
| SOLARIS | 1509558025 |
