Description

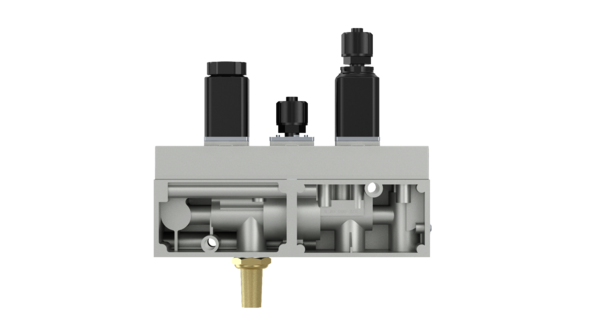

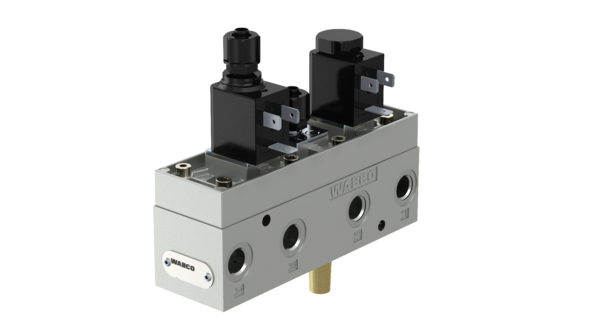

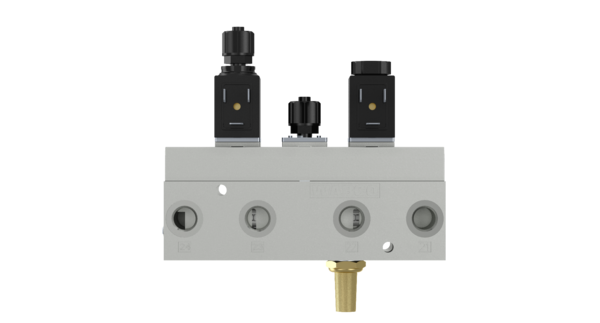

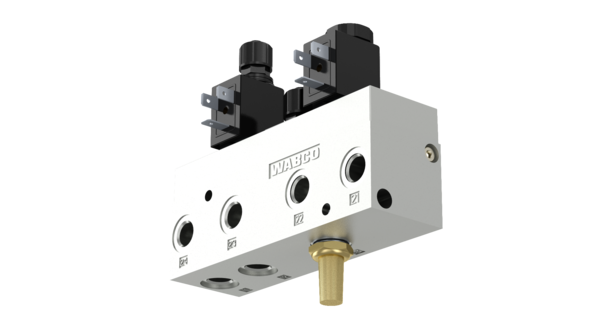

Door Control Valve
Part Number: 4726000010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.9452 |
| Comments | MTS |
| Distance between holes | 80×27.4 mm |
| Electrical connection | 2x 3-Pole to fit 6.3 DIN 46247 |
| Max. operating pressure | 10.0 bar |
| Mounting | 2x ¯ 5.2 mm |
| Nominal diameter | 4.0 mm |
| Port thread 11 | M12 x 1.5 |
| Port thread 12 | M12 x 1.5 |
| Port thread 21 | M12 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 23 | M12 x 1.5 |
| Port thread 24 | M12 x 1.5 |
| Port thread 3 | 5324001170 |
| Port thread 41 | Quick Connection 8 x 1 |
| Port thread 42 | Quick Connection 8 x 1 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Protection class | IP 65 |
| Rated current | 115 mA |
| Technical specification | OE specification |
| Temperature range | -25°C to 80°C |
| Type | 4/3-Way |
| Voltage | 24 V |
| GTIN | 04057875220282 |
| Size (mm x mm x mm) | 136 x 50 x 139 |
| UPC | 193133312260 |
| Weight (kg) | 1.27 |
| Weight (lb) | 2.7999 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1506178 |
| EVOBUS | A0007603978 |
| MERCEDES-BENZ | 0007603978 |
| MERCEDES-BENZ | A0007603978 |
