Description

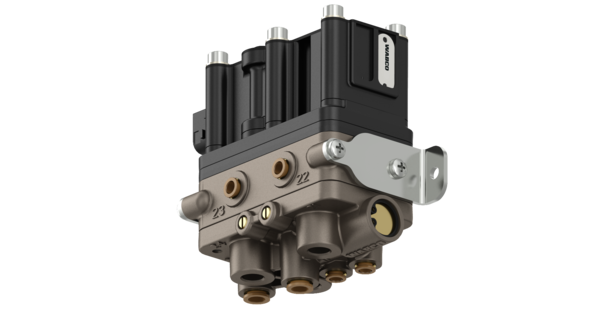

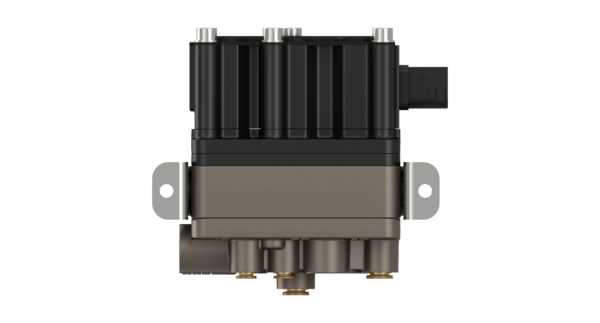

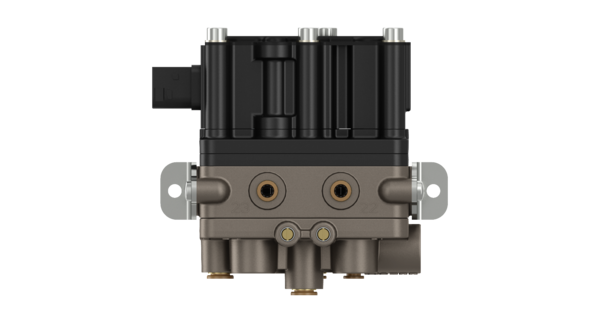

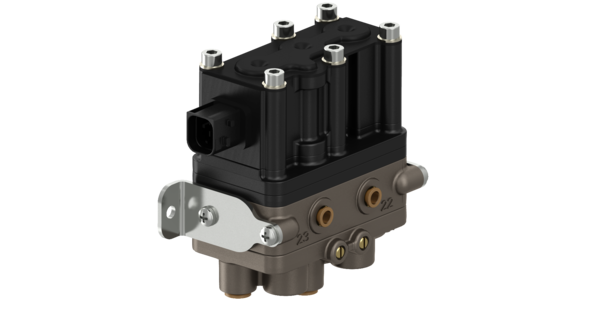

Door Control Valve
Part Number: 4726010010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 1.2005 |
| Comments | MTS2 |
| Distance between holes | 125 mm |
| Electrical connection | 1x HDSCS 4 x 2.8 Code A |
| Max. operating pressure | 10.0 bar |
| Mounting | 2x ¯ 6.5 mm |
| Nominal diameter | 4.0 mm |
| Port thread 11 | Quick Connection 8 x 1 |
| Port thread 21 | M12 |
| Port thread 22 | Quick Connection 6 x 1 |
| Port thread 23 | Quick Connection 6 x 1 |
| Port thread 24 | M12 |
| Port thread 3 | Quick Connection 8 x 1 |
| Port thread 41 | Quick Connection 6 x 1 |
| Port thread 42 | Quick Connection 6 x 1 |
| Port thread 43 | M12 |
| Product category | Device |
| Protection class | IP 6K |
| Rated current | 320 mA |
| Technical specification | OE specification |
| Temperature range | -25°C to 80°C |
| Type | 3x 3/2-Way |
| Voltage | 24 V |
| GTIN | 04057875220275 |
| Size (mm x mm x mm) | 129 x 141 x 66 |
| UPC | 193133406556 |
| Weight (kg) | 1.307 |
| Weight (lb) | 2.8814 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A0007609078 |
