Description

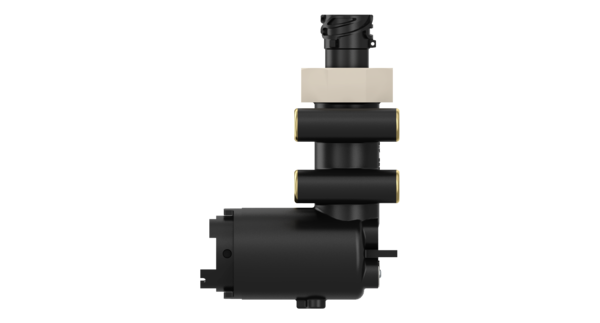

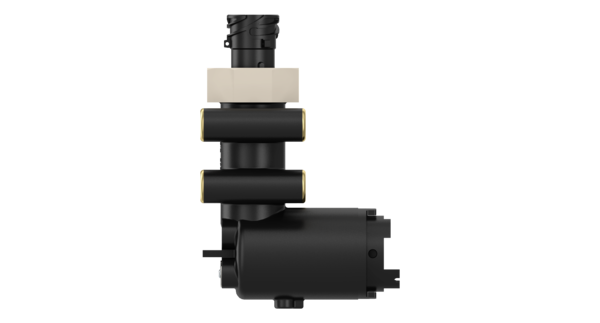

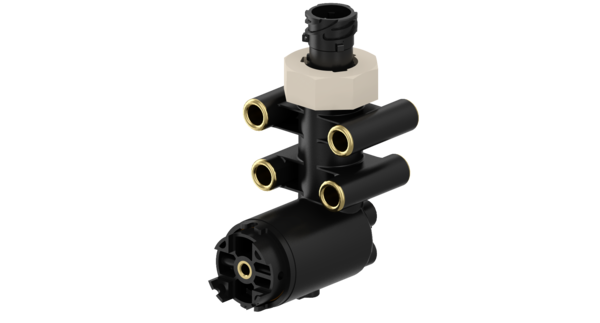

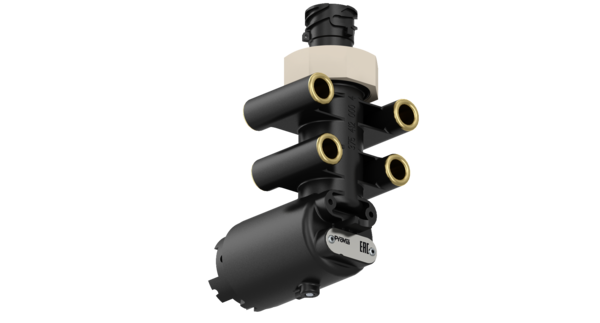

Distance Sensor
Part Number: PRO4120210
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Application | Truck |
| Calculated Volume (dm³) | 0.775 |
| Distance between holes | 40/50 mm |
| Electrical connection | Bayonet DIN 72585-A1-2.1-Sn/K2 |
| Mounting | 4x Ø 9 mm |
| ProVia warranty | 1 year |
| Product category | Device |
| Protection class | IP 6K9K |
| Rated current | 90 mA |
| Technical specification | AM specification |
| Temperature range | -40°C to +80°C |
| Type | Inductive |
| Type of lever | Without lever |
| Voltage | 12 V |
| GTIN | 04057877044176 |
| Size (mm x mm x mm) | 134 x 65 x 89 |
| UPC | 193134011513 |
| Weight (kg) | 0.181 |
| Weight (lb) | 0.399 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ASHOK LEYLAND | 442562001 |
| DAF | 1505054 |
| EVOBUS | A0015420018 |
| FREIGHTLINER | TDAS4410500120 |
| GOLDHOFER | 167979 |
| IRISBUS | 500340806 |
| IVECO | 500340806 |
| KENWORTH | S441-050-012-0 |
| KRONE | 5815978 |
| KRONE | 5058159780 |
| KRONE | 505815978 |
| KÄSSBOHRER | 21150110107 |
| KÖGEL | 69093 |
| LANGENDORF | 1269680 |
| MACK | 6300-4410500120 |
| MAN | 81259370023 |
| MAN | 2Z0409270C |
| MERCEDES-BENZ | 0015420018 |
| MERCEDES-BENZ | A0015420018 |
| MERCEDES-BENZ | 0005424018 |
| MERITOR | S4410500120 |
| NEOPLAN | 81259370023 |
| OTOKAR | 16N3403762P1 |
| PACCAR | 1505054 |
| PETERBILT | S441-050-012-0 |
| RENAULT | 5021170130 |
| SCANIA | 1934583 |
| SCHMITZ CARGOBULL | 56353 |
| SCHMITZ CARGOBULL | 056353 |
| SCHWARZMÜLLER | 61937 |
| SOLARIS | 1021400700 |
| TIRSAN | 21150110107 |
| VDL | 30013494 |
| VDL | 28220101900 |
| VOLVO | WAB4410500120 |
| VW | 2Z0409270C |
