Description

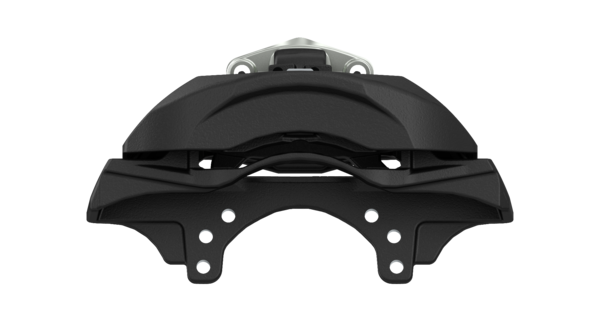

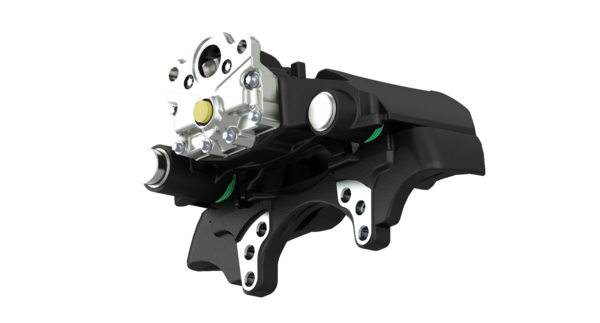

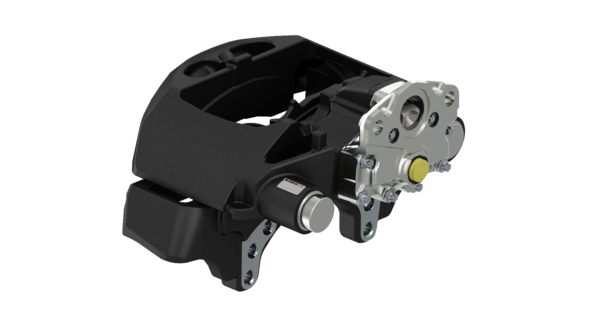

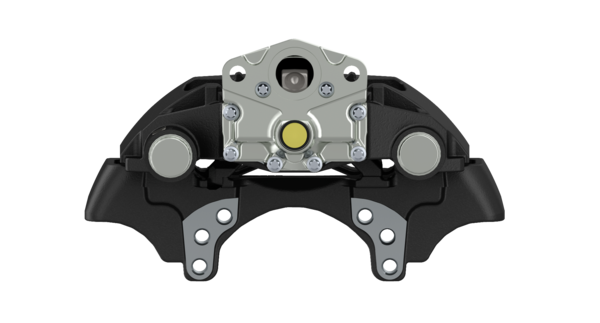

Disc brake PAN 22
Part Number: 6402250400
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Brake disc | 45 mm |
| Calculated Volume (dm³) | 35.393 |
| Diameter | 430.0 mm |
| Electrical connection | Socket |
| Mounting | 6x M16 x 1.5 |
| Product category | Device |
| Side of mounting | Left |
| Stroke | 26.0 mm |
| Technical specification | OE specification |
| Type | PAN 22-1 |
| Version | Without Pads |
| GTIN | 04057875232568 |
| Size (mm x mm x mm) | 445 x 266 x 299 |
| UPC | 193133263845 |
| Weight (kg) | 31.334 |
| Weight (lb) | 69.0796 |
OEM Cross References
| Brand | Reference No |
|---|---|
| SCHMITZ CARGOBULL | SCB1068161 |
| SCHMITZ CARGOBULL | 1068161 |
| VOLVO | WA6402250400 |
