Description

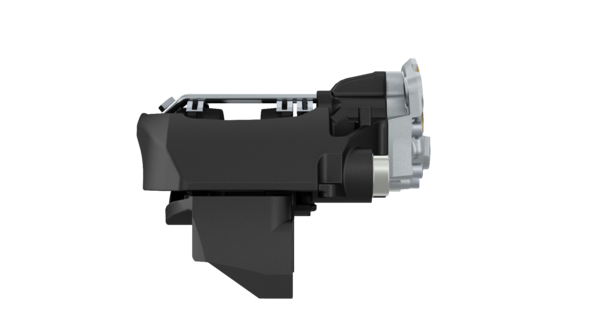

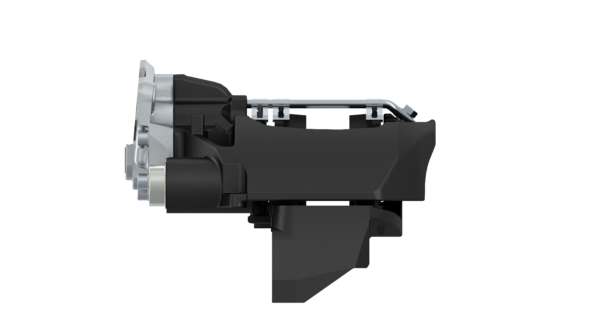

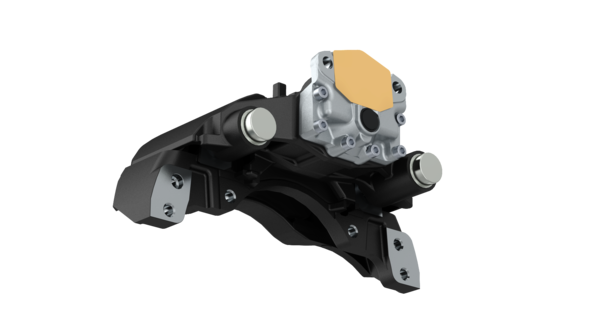

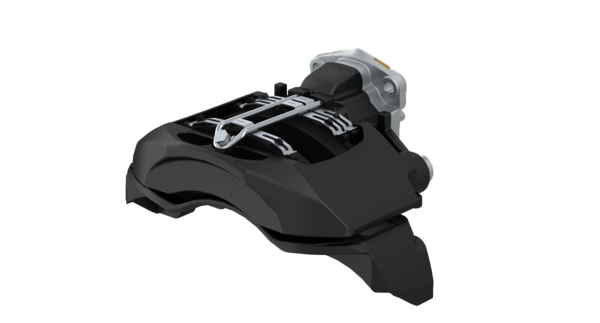

Disc Brake PAN 22-1
Part Number: 40225012
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Brake disc | 45 mm |
| Calculated Volume (dm³) | 33.54 |
| Diameter | 430.0 mm |
| Electrical connection | Socket |
| Mounting | 4x M12 x 1.5 |
| Product category | Device |
| Side of mounting | Right |
| Stroke | 26.5 mm |
| Technical specification | OE specification |
| Type | PAN 22-1 |
| Version | With Pads |
| GTIN | 04057875154341 |
| Size (mm x mm x mm) | 458 x 324 x 226 |
| UPC | 193133227281 |
| Weight (kg) | 38.36 |
| Weight (lb) | 84.58 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FAW | 3501030A4S |
| FAW | 3501030-A4S |
| MERITOR | S40225012 |
