Description

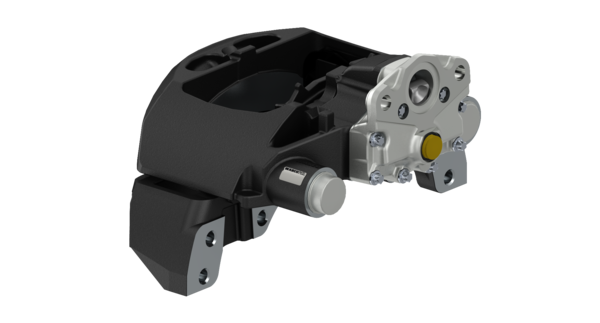

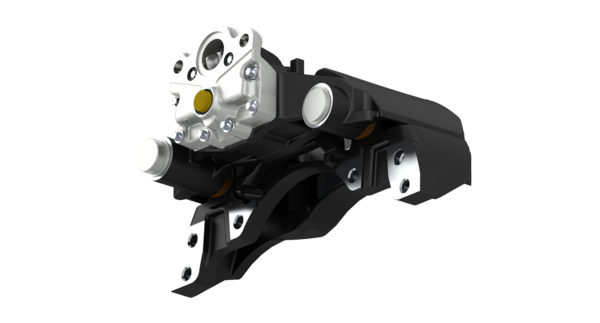

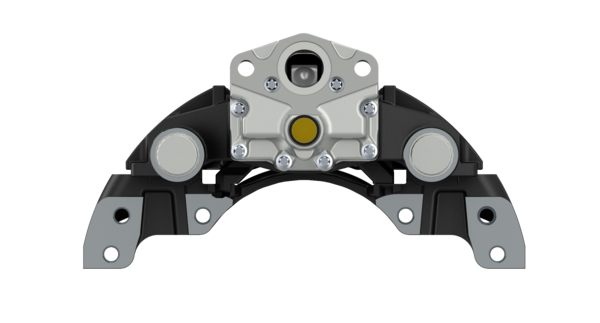

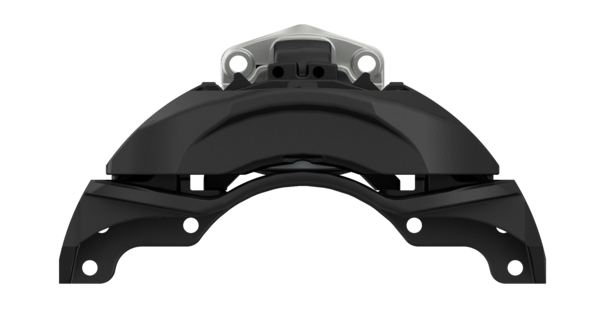

Disc Brake PAN 22-1
Part Number: 40225016
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Brake disc | 45 mm |
| Calculated Volume (dm³) | 35.775 |
| Diameter | 430.0 mm |
| Electrical connection | Socket |
| Mounting | 4x M12 x 1.5 |
| Product category | Device |
| Side of mounting | Right |
| Stroke | 26.5 mm |
| Technical specification | OE specification |
| Type | PAN 22-1 |
| Version | Without Pads |
| GTIN | 04057875154327 |
| Size (mm x mm x mm) | 461 x 322 x 241 |
| UPC | 193133427728 |
| Weight (kg) | 30.144 |
| Weight (lb) | 66.4561 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 877934 |
| DAF | 0877934 |
| PACCAR | 0877934 |
| SAF | 4080005000 |
| SCANIA | 2093077 |
| SCHWARZMÜLLER | 79822 |
| VOLVO | WA40225016 |
