Description

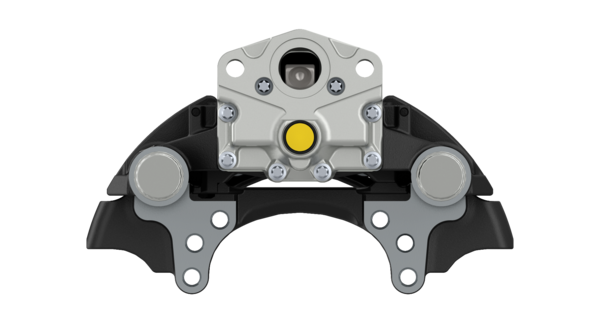

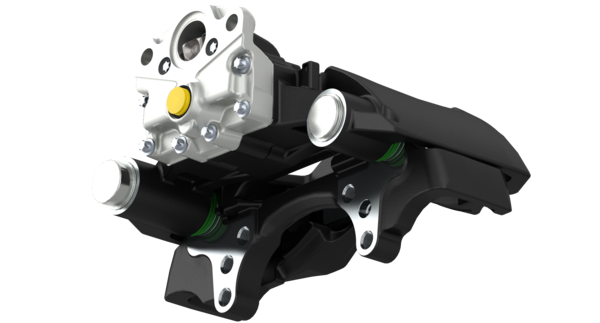

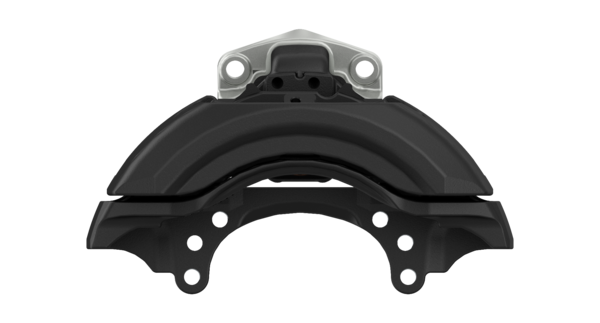

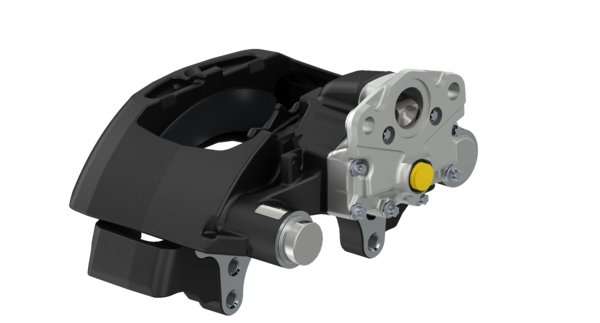

Disc brake PAN 19
Part Number: 6401950950
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Brake disc | 45 mm |
| Calculated Volume (dm³) | 27.75 |
| Diameter | 375.0 mm |
| Electrical connection | Socket |
| Mounting | 6x M16 x 1.5 |
| Product category | Device |
| Side of mounting | Left |
| Stroke | 24.5 mm |
| Technical specification | OE specification |
| Type | PAN 19-1 Plus |
| Version | Without Pads |
| GTIN | 04057875231868 |
| Size (mm x mm x mm) | 250 x 370 x 300 |
| UPC | 193133321606 |
| Weight (kg) | 28 |
| Weight (lb) | 61.7294 |
OEM Cross References
| Brand | Reference No |
|---|---|
| SCHMITZ CARGOBULL | 1110437 |
