Description

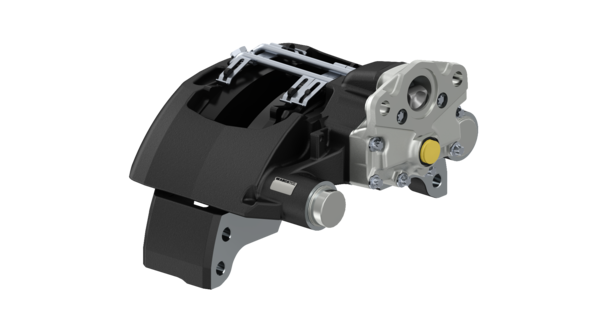

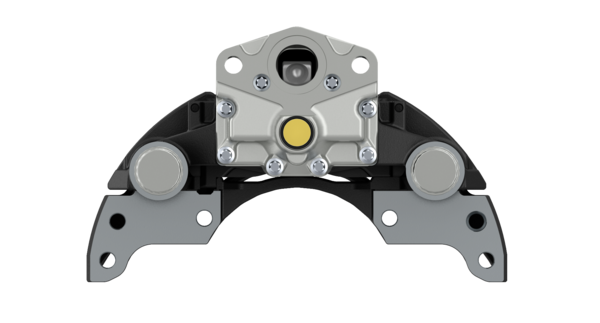

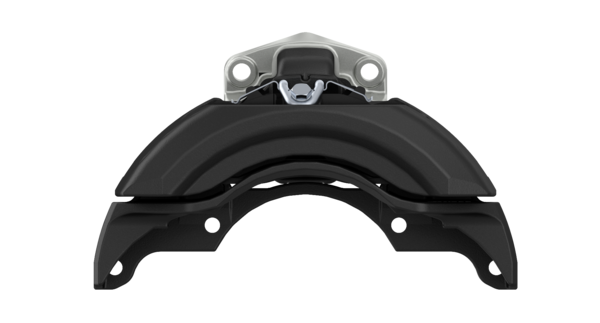

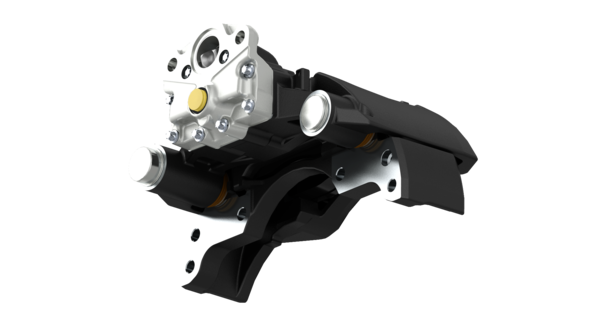

Disc Brake PAN 19-1
Part Number: 40195028
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Brake disc | 45 mm |
| Calculated Volume (dm³) | 31.8923 |
| Diameter | 375.0 mm |
| Electrical connection | Socket |
| Mounting | 4x M12 x 1.5 |
| Product category | Device |
| Side of mounting | Right |
| Stroke | 24.5 mm |
| Technical specification | OE specification |
| Type | PAN 19-1 Plus |
| Version | With Pads |
| GTIN | 04057875154051 |
| Size (mm x mm x mm) | 401 x 337 x 236 |
| UPC | 193133227052 |
| Weight (kg) | 32.147 |
| Weight (lb) | 70.8719 |
OEM Cross References
| Brand | Reference No |
|---|---|
| GIGANT | 709285202 |
| MERITOR | S40195028 |
