Description

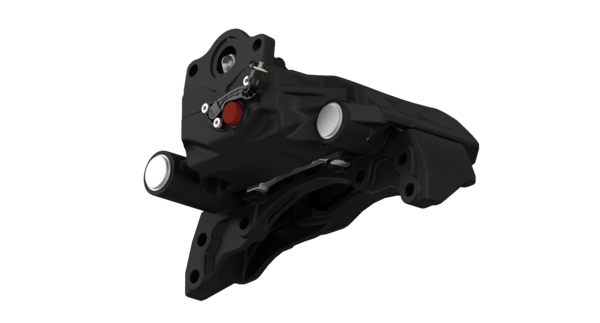

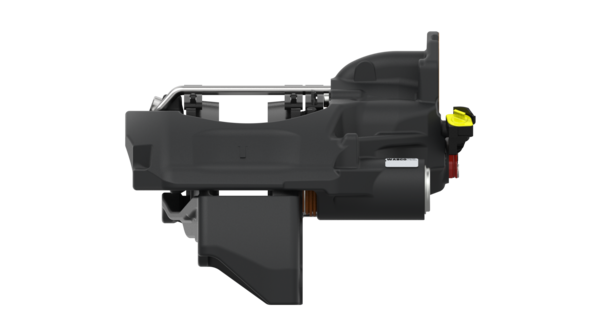

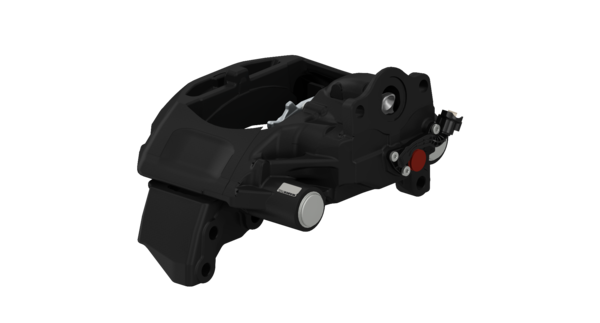

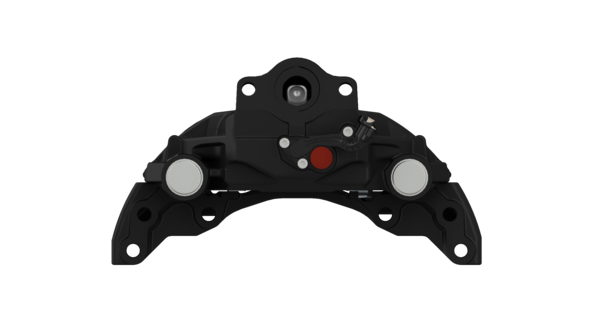

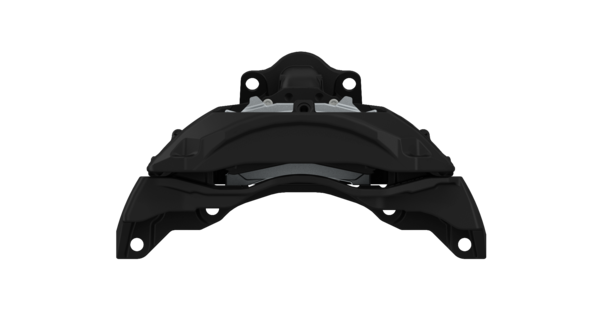

Disc Brake NG22MAX
Part Number: 6403220320
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Brake disc | 45 mm |
| Calculated Volume (dm³) | 77.76 |
| Diameter | 432.0 mm |
| Electrical connection | Socket |
| Mounting | 6x M18 x 1.5 |
| Product category | Device |
| Side of mounting | Front Axle Right |
| Stroke | 21.0 mm |
| Technical specification | OE specification |
| Type | MAXX 22 |
| Version | Without Pads |
| Voltage | 1.01 to 1.4 V |
| GTIN | 04057875233817 |
| Size (mm x mm x mm) | 540 x 400 x 360 |
| UPC | 193133322238 |
| Weight (kg) | 36.5 |
| Weight (lb) | 80.4686 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MAN | 81508046556 |
| MAN | 81508046578 |
| MAN | 81508046646 |
| MAN | 81.50804-6578 |
| MAN | 81.50804-6576 |
| MAN | 81.50804-6632 |
| MAN | 81.50804-6636 |
