Description

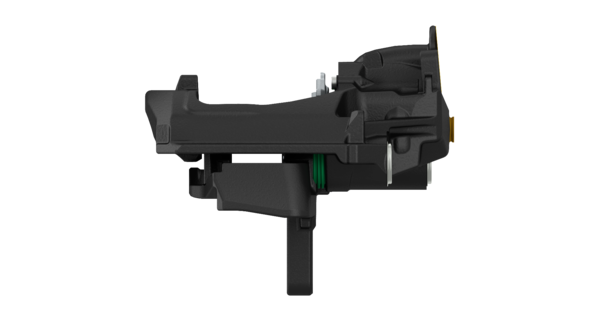

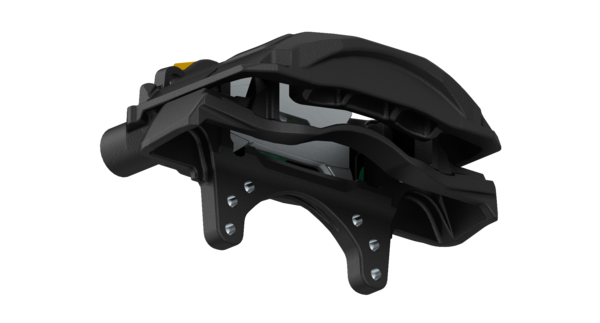

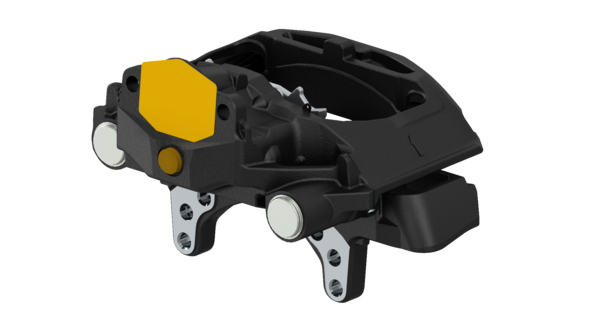

Disc Brake NG WX platform
Part Number: 6402220040
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Brake disc | 45 mm |
| Calculated Volume (dm³) | 96 |
| Diameter | 430.0 mm |
| Mounting | 6x M16 x 1.5 |
| Product category | Device |
| Side of mounting | Right |
| Stroke | 22.0 mm |
| Technical specification | OE specification |
| Type | MAXX 22T |
| Version | Without Pads |
| GTIN | 04057875232308 |
| Size (mm x mm x mm) | 400 x 400 x 600 |
| UPC | 193133321750 |
| Weight (kg) | 28.75 |
| Weight (lb) | 63.38 |
OEM Cross References
| Brand | Reference No |
|---|---|
| SCHMITZ CARGOBULL | 1199857 |
| SCHMITZ CARGOBULL | 1156802 |
