Description

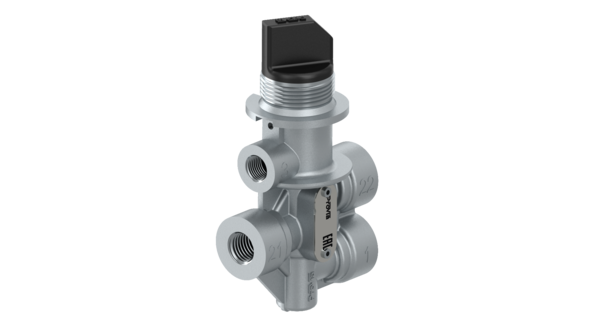

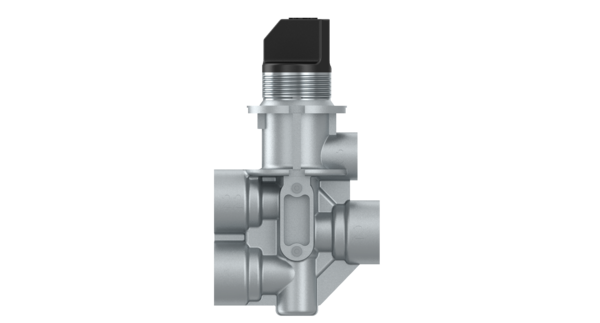

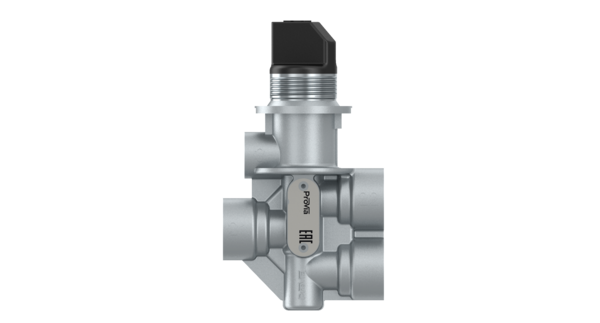

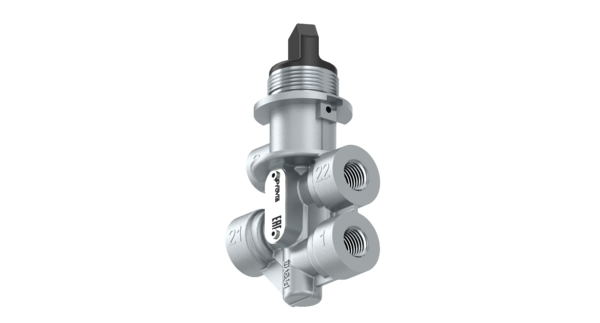

Directional Control Valve
Part Number: PRO0370010
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Actuation | Turn |
| Actuation angle | 30°/60°/60° |
| Calculated Volume (dm³) | 0.599 |
| Comments | With locking function |
| Exhaust | M10 x 1 |
| Max. operating pressure | 11.0 bar |
| Mounting | M28 x 1.5 |
| Nominal diameter | 4.0 mm |
| Parking position | 60° |
| Port thread 1 | M12 x 1.5 |
| Port thread 21 | M12 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 3 | M10 x 1 |
| ProVia warranty | 1 year |
| Product category | Device |
| Technical specification | AM specification |
| Temperature range | -25°C to +80°C |
| Type | 4/3 |
| GTIN | 04057877050313 |
| Size (mm x mm x mm) | 105 x 95 x 60 |
| UPC | 193134009800 |
| Weight (kg) | 0.345 |
| Weight (lb) | 0.7606 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518089 |
| IRISBUS | 98413420 |
| IRISBUS | 41211132 |
| IVECO | 98413420 |
| IVECO | 116049 |
| IVECO | 9841342 |
| IVECO | 41211132 |
