Description

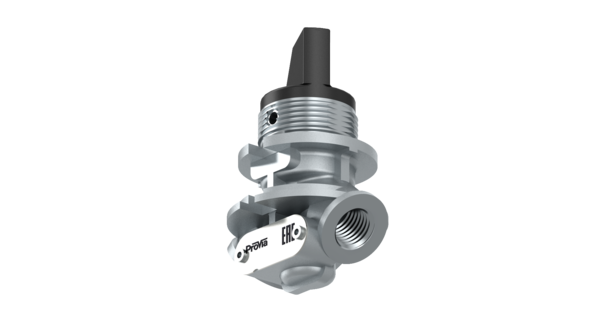

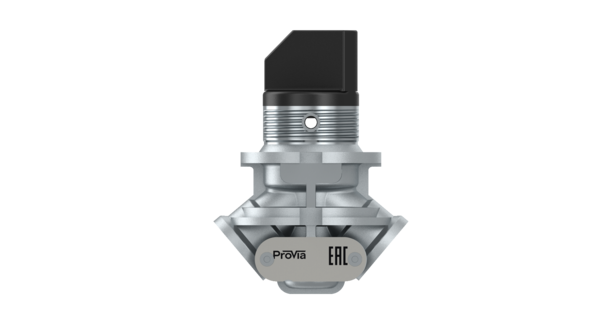

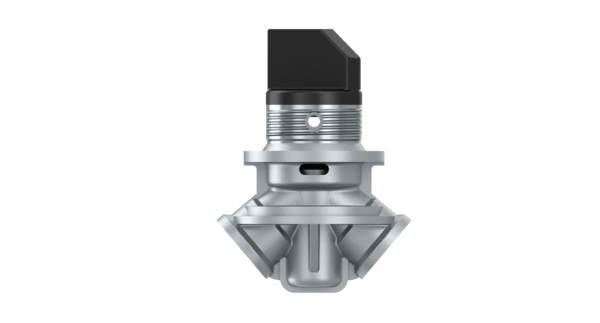

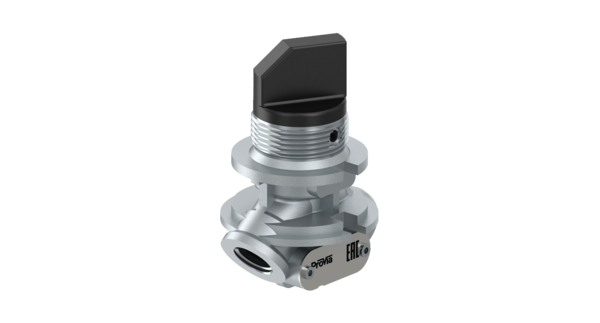

Directional Control Valve
Part Number: PRO0360010
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Actuation | Turn |
| Actuation angle | 90° |
| Calculated Volume (dm³) | 0.618 |
| Comments | M10x1 |
| Max. operating pressure | 11.0 bar |
| Mounting | M28 x 1.5 |
| Nominal diameter | 4.0 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Port thread 3 | Exhaust |
| ProVia warranty | 1 year |
| Product category | Device |
| Technical specification | AM specification |
| Temperature range | -25°C to +80°C |
| Type | 3/2 |
| GTIN | 04057877050320 |
| Size (mm x mm x mm) | 100 x 95 x 65 |
| UPC | 193134009718 |
| Weight (kg) | 0.195 |
| Weight (lb) | 0.4299 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518083 |
| DAF | 1524824 |
| IRISBUS | 98413419 |
| IRISBUS | 41211131 |
| IVECO | 98413419 |
| IVECO | 15170752 |
| IVECO | 116517 |
| IVECO | 41211131 |
| KEMPF | 26798 |
| OTOKAR | 16H1208506AA |
| PACCAR | 1518083 |
| SCANIA | 1788962 |
