Description

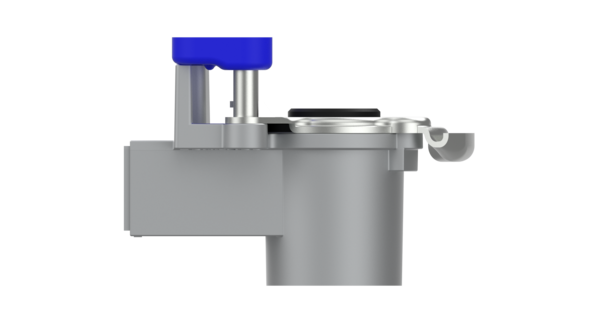

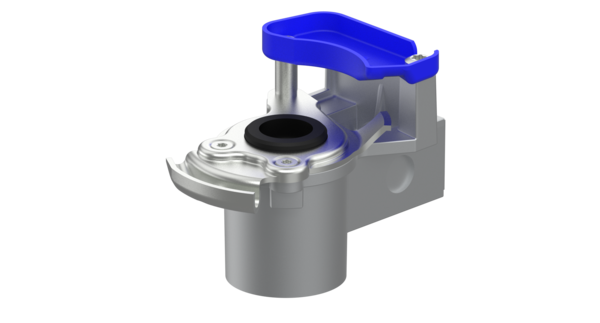

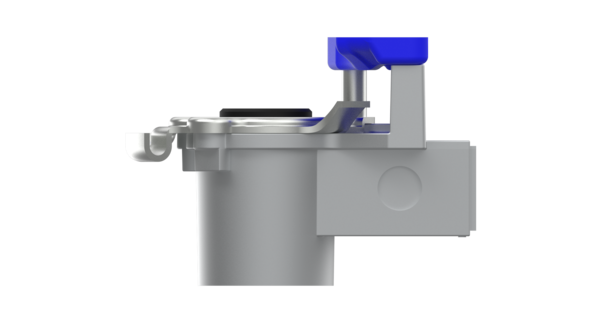

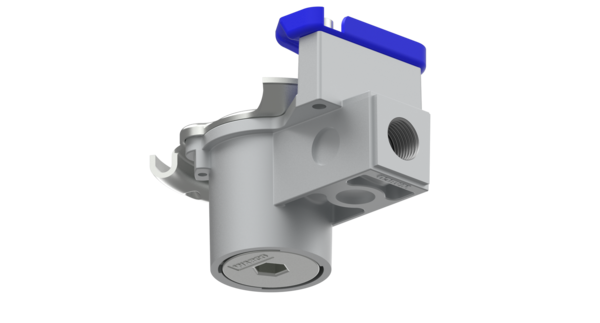

Coupling Head with Integrated Filter
Part Number: 9522010190
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | Trailer |
| Calculated Volume (dm³) | 0.449 |
| Cover color | Blue |
| Filter | Yes |
| Max. operating pressure | 8.5 bar |
| Port thread 1 | 1/2″ – 14 NPTF |
| Product category | Component |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Test connection | no |
| Type | With filter |
| Version | Without test connection |
| GTIN | 04057875295563 |
| Size (mm x mm x mm) | 102 x 62 x 71 |
| UPC | 193133449041 |
| Weight (kg) | 0.323 |
| Weight (lb) | 0.712092 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1524754 |
| FREIGHTLINER | TDAS9522010190 |
| HYUNDAI | 10033832 |
| KENWORTH | S952-201-019-0 |
| MACK | 6300-9522010190 |
| MANAC | 223-1078 |
| MERITOR | S9522010190 |
| PETERBILT | S952-201-019-0 |
| VANGUARD | 1GLH00047 |
| VOLVO | TDAS9522010190 |
| VOLVO | WAB9522010190 |
| WABASH | 12600547 |
| WILSON | APP01148D |
