Description

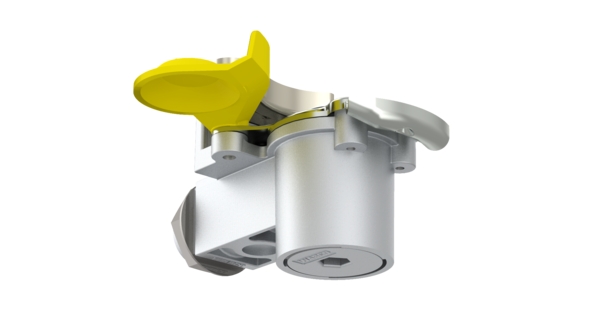

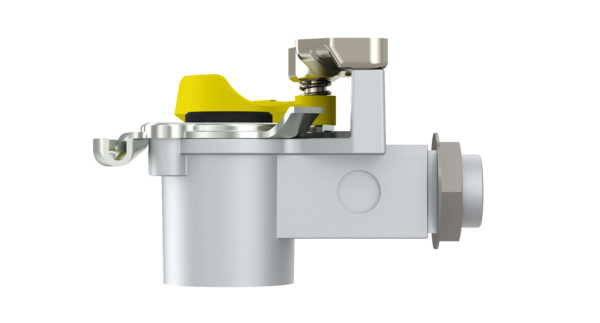

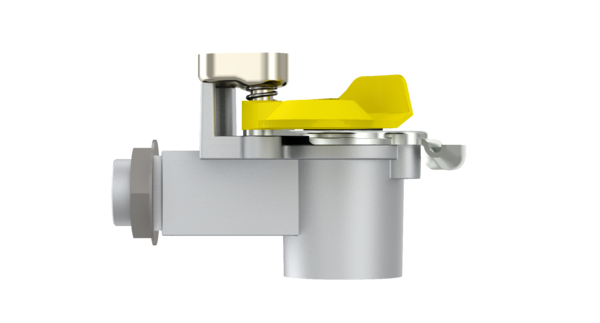

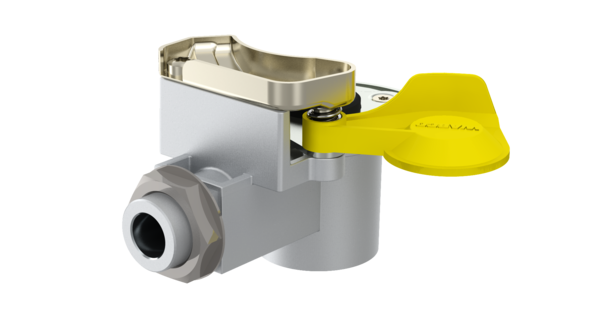

Coupling Head with Integrated Filter
Part Number: 9522010010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | Trailer |
| Calculated Volume (dm³) | 0.588 |
| Color | Black/Black |
| Filter | Yes |
| Max. operating pressure | 8.5 bar |
| Port thread 1 | M16 x 1.5 |
| Port threads | M16 x 1.5 |
| Product category | Component |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Test connection | no |
| Type | With filter |
| Version | Without test connection |
| GTIN | 04057875295440 |
| Size (mm x mm x mm) | 126 x 64 x 77 |
| UPC | 193133448990 |
| Weight (kg) | 0.368 |
| Weight (lb) | 0.8113 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518206 |
| KENWORTH | S9522010010 |
| KRONE | 5820329 |
| KRONE | 5058203290 |
| KÄSSBOHRER | 21151103103 |
| KÖGEL | 6500331 |
| LECITRAILER | 4111330 |
| MAN | 81998062077 |
| MERITOR | S9522010010 |
| OTOKAR | AIF1174 |
| PACCAR | 1518206 |
| PETERBILT | S9522010010 |
| SCANIA | 1912348 |
| SCHMITZ CARGOBULL | 1020771 |
| SCHWARZMÜLLER | 55106 |
| TIRSAN | 21151103103 |
| VOLVO | WA9522010010 |
