Description

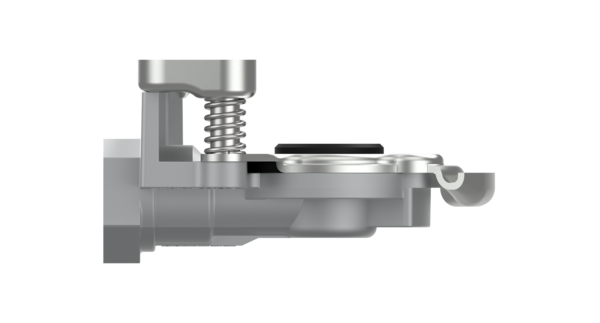

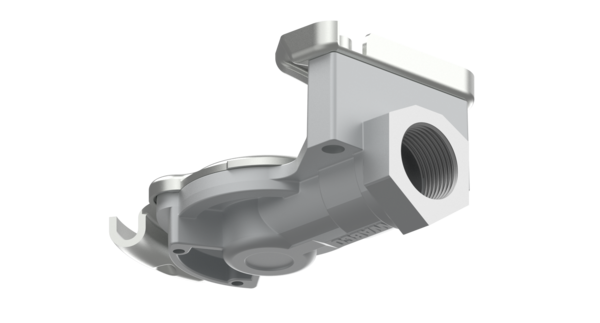

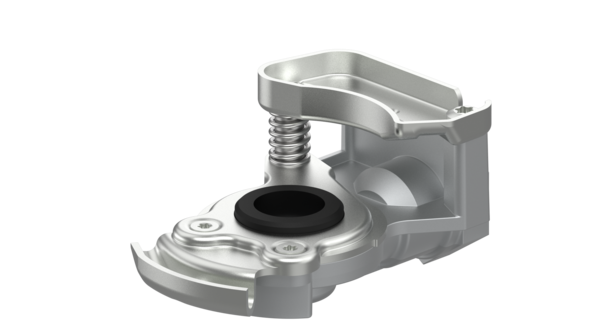

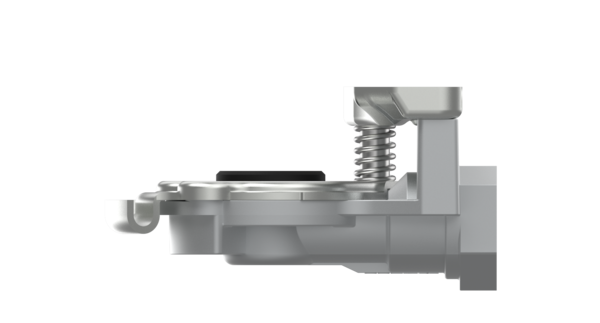

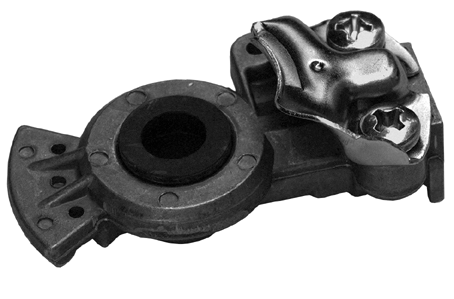

Coupling Head
Part Number: 4522000000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | Trailer |
| Calculated Volume (dm³) | 0.35241 |
| Cover color | Without cover |
| Filter | No |
| Max. operating pressure | 8.5 bar |
| Port thread 1 | M22 x 1.5 |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Test connection | no |
| Type | Without filter |
| Version | Without test connection |
| GTIN | 04057875206767 |
| Size (mm x mm x mm) | 98 x 62 x 58 |
| UPC | 193133300717 |
| Weight (kg) | 0.19 |
| Weight (lb) | 0.41888 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 307576 |
| DAF | 566413 |
| DAF | 1506066 |
| EVOBUS | 8283220000 |
| EVOBUS | A0004294730 |
| FAUN | 1627012 |
| FAUN | 99708410799 |
| FENDT | 186880020050 |
| FENDT | F186880020050 |
| IVECO | 03350313 |
| IVECO | 2492706 |
| IVECO | 3414876 |
| LEYLAND DAF | 700800 |
| MAN | 81512200002 |
| MAN | 81512200010 |
| MAN | 81512206029 |
| MERCEDES-BENZ | 0004294730 |
| MERCEDES-BENZ | A0004294730 |
| NEOPLAN | 81512206029 |
| SCANIA | 1934819 |
| TEREX | 95676200 |
