Description

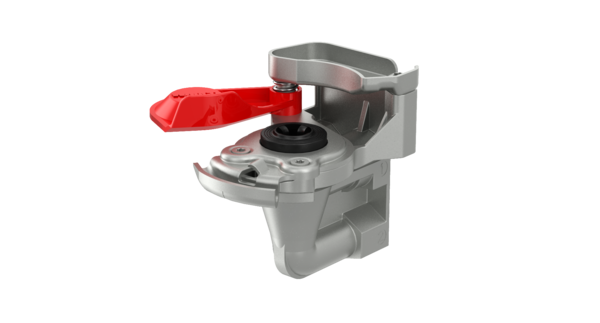

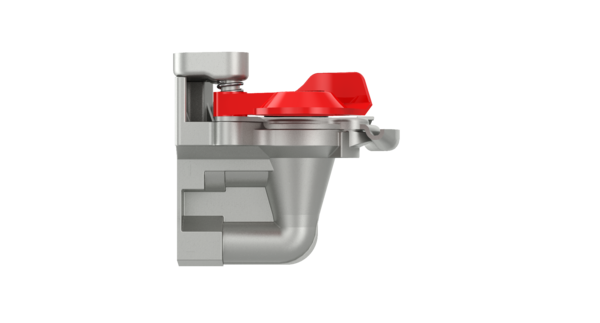

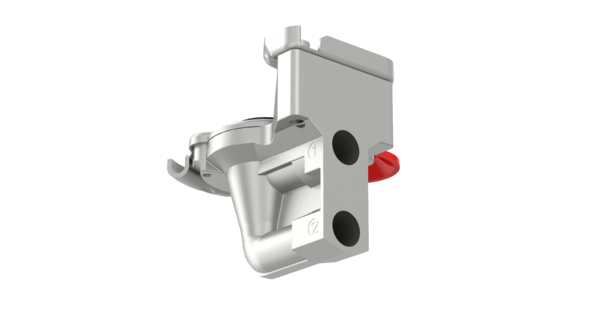

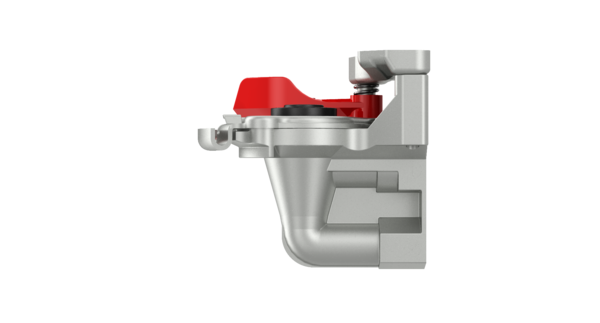

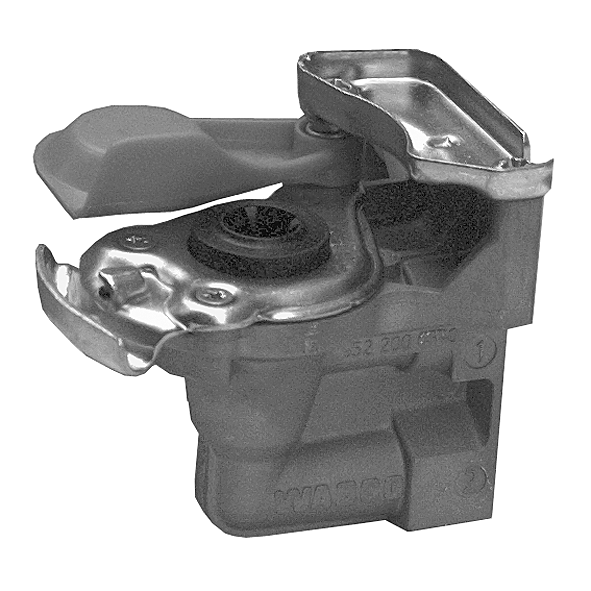

Coupling Head
Part Number: 9522002100
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | Towing vehicle |
| Calculated Volume (dm³) | 0.5411 |
| Color | Red |
| Filter | No |
| Max. operating pressure | 10.0 bar |
| Port thread 1 | 2x M16 x 1.5 |
| Port threads | M16 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Without filter |
| Version | Without test connection |
| GTIN | 04057875295327 |
| Size (mm x mm x mm) | 95 x 64 x 89 |
| UPC | 193133367017 |
| Weight (kg) | 0.268 |
| Weight (lb) | 0.590838 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 0031062 |
| DAF | 31062 |
| DAF | 1505130 |
| EVOBUS | 8283987000 |
| EVOBUS | A0004297830 |
| FAUN | 1627047 |
| FAUN | 1627067 |
| FAUN | 99708410810 |
| FAYMONVILLE | 01178 |
| IVECO | 02516792 |
| IVECO | 02516808 |
| IVECO | 02516902 |
| IVECO | 02521371 |
| IVECO | 2516792 |
| IVECO | 04463725 |
| IVECO | 04463735 |
| IVECO | 42159059 |
| IVECO | 98154926 |
| KEMPF | 2113009 |
| KÄSSBOHRER | 82839870000 |
| KÖGEL | 79429 |
| LANGENDORF | 1133113 |
| LEYLAND DAF | 17524 |
| LIEBHERR | 5029665 |
| LIEBHERR | 502966508 |
| LIEBHERR | 502966514 |
| MAN | 81512206037 |
| MAN | 81512206039 |
| MAN | 81512206042 |
| MAN | 81512206066 |
| MAN | 81512206034 |
| MERCEDES-BENZ | 0004293730 |
| MERCEDES-BENZ | 0004294930 |
| MERCEDES-BENZ | 0004296330 |
| MERCEDES-BENZ | 0004297830 |
| MERCEDES-BENZ | A0004297830 |
| NEOPLAN | 81512206066 |
| NOOTEBOOM | 1751357 |
| PACCAR | 1505130 |
| RENAULT | 5516017524 |
| RENAULT | 5021170411 |
| SCANIA | 1935532 |
| SCHMITZ CARGOBULL | 82839870000 |
| SCHWARZMÜLLER | 4620 |
| TEREX | 26435840 |
| VOLVO | WA9522002100 |
| VW | 600607344 |
| VW | 600607344A |
