Description
Connecting Cable
Part Number: 4496161580
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |

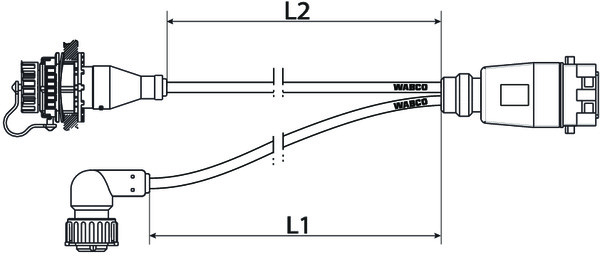

| Cable end (left side of diagram) | Diagnosis socket with blue cap 7-pin + bayonet socket ISO 15170-B1-3.1-Sn/K1 4-pin |
| Cable end (right side of diagram) | X6 auxiliary plug 8-pin |
| Calculated Volume (dm³) | 51.1991 |
| Length L1 | 15.00 m |
| Length L2 | 3.0 m |
| Product category | Device |
| Technical specification | OE specification |
| GTIN | 7895851085770 |
| Size (mm x mm x mm) | 392 x 370 x 353 |
| UPC | 193133297369 |
| Weight (kg) | 1.446 |
| Weight (lb) | 3.1879 |
OEM Cross References
| Brand | Reference No |
|---|---|
| SCANIA | 2091285 |
