Description
Connecting Cable
Part Number: 4491321200
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | VCS |

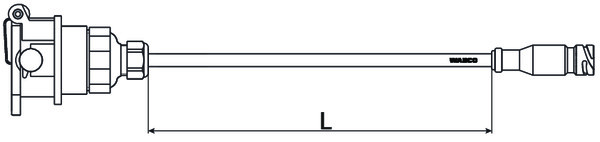

| Cable end (left side of diagram) | Socket ISO 7638 7-pin |
| Cable end (right side of diagram) | Coupling connector 5-pin |
| Calculated Volume (dm³) | 13.269 |
| Comments | Combination with 449 331 … |
| Length | 12 m |
| Ports | Power supply line ISO 24 V |
| Product category | Device |
| Technical specification | OE specification |
| Type | Semi trailer |
| GTIN | 7895851085626 |
| Size (mm x mm x mm) | 368 x 357 x 101 |
| UPC | 193133439912 |
| Weight (kg) | 2.66 |
| Weight (lb) | 5.86429 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518034 |
| FELDBINDER | 2777 |
| FRUEHAUF | GV66000410 |
| HAMANA | GV66000410 |
| KENWORTH | S4491321200 |
| KRONE | 5811894 |
| KRONE | 5818940 |
| KRONE | 5058189400 |
| KÖGEL | 69088 |
| LANGENDORF | 1110824 |
| LECITRAILER | 4300450 |
| MACK | 6300-4491321200 |
| MERITOR | S4491321200 |
| NIPPON TREX | 924301-00099 |
| NOMA | 9208197 |
| PACCAR | 1518034 |
| PASTRE | 931502006 |
| PETERBILT | S4491321200 |
| SCANIA | 2091155 |
| SCHMITZ CARGOBULL | 051365 |
| SCHMITZ CARGOBULL | 51365 |
| TOHO | C3225-6802-0 |
| VOLVO | WAB4491321200 |
| WILSON | APP05121D |
