Description

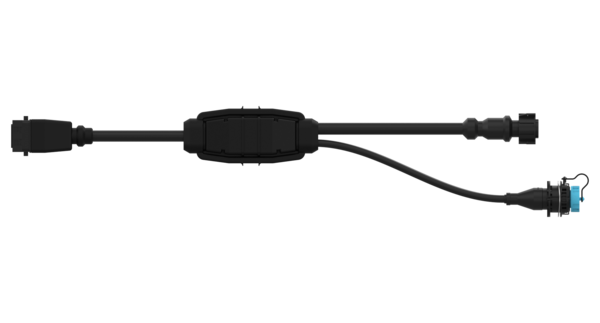

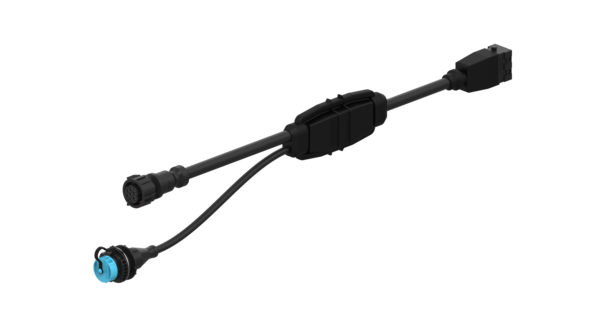

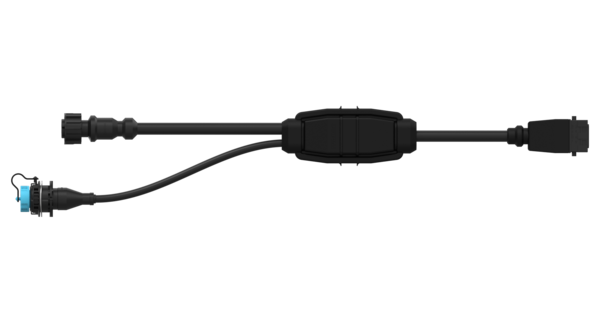

Connecting Cable
Part Number: 4493861480
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |

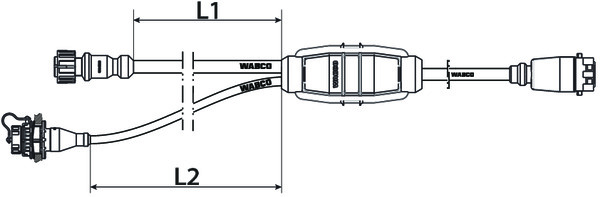

| Cable end (left side of diagram) | Coupling socket 7-pin + diagnosis socket with blue cap 7-pin |
| Cable end (right side of diagram) | X1 power 8-pin |
| Calculated Volume (dm³) | 10.3117 |
| Length L1 | 3.00 m |
| Length L2 | 3.0 m |
| Product category | Device |
| Technical specification | OE specification |
| GTIN | 04057875201908 |
| Size (mm x mm x mm) | 409 x 382 x 66 |
| UPC | 193133295778 |
| Weight (kg) | 1.774 |
| Weight (lb) | 3.911 |
OEM Cross References
| Brand | Reference No |
|---|---|
| GOLDHOFER | 168708 |
| LIEBHERR | 10165804 |
| NOOTEBOOM | 3318130 |
| SCANIA | 2091222 |
| TOHO | B3225-7462-0 |
