Description

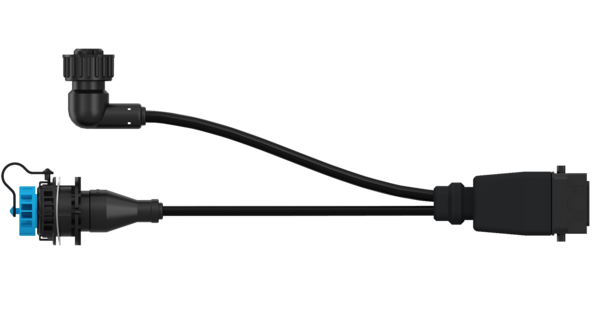

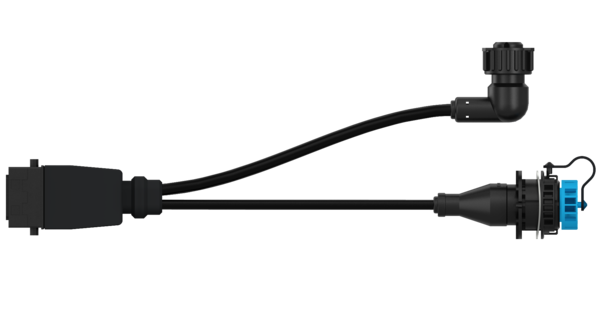

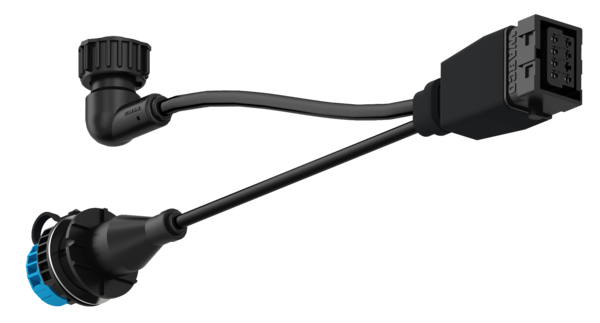

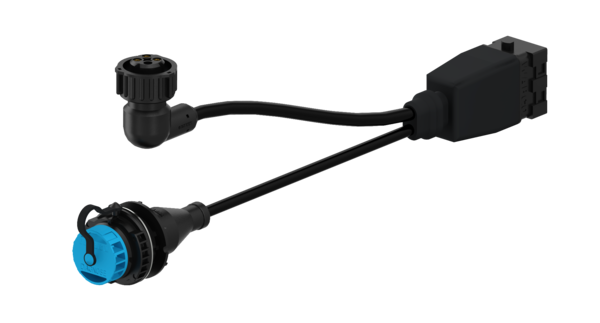

Connecting Cable
Part Number: 4496162530
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |

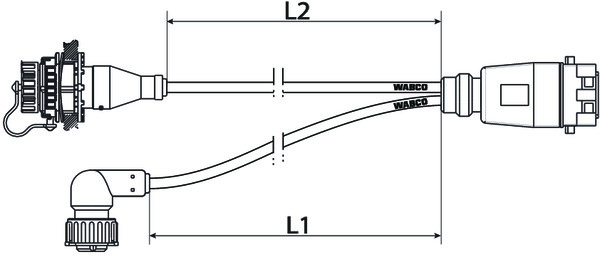

| Cable end (left side of diagram) | Diagnosis socket with blue cap 7-pin + bayonet socket ISO 15170-B1-3.1-Sn/K1 4-pin |
| Cable end (right side of diagram) | X6 auxiliary plug 8-pin |
| Calculated Volume (dm³) | 5.5363 |
| Length L1 | 6.00 m |
| Length L2 | 6.0 m |
| Product category | Device |
| Technical specification | OE specification |
| GTIN | 04057875203599 |
| Size (mm x mm x mm) | 365 x 316 x 48 |
| UPC | 193133297864 |
| Weight (kg) | 0.873 |
| Weight (lb) | 1.9246 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FAYMONVILLE | 71077 |
| LECITRAILER | 4301050 |
| SCANIA | 2091288 |
| SCHMITZ CARGOBULL | 1065505 |
