Description

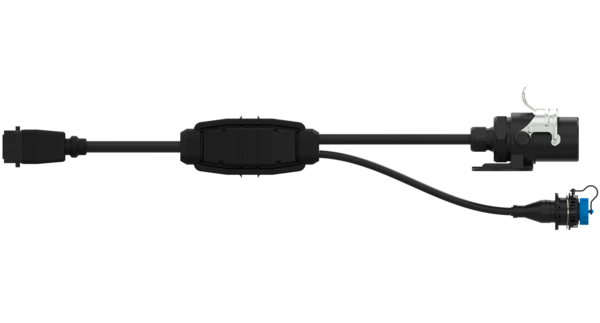

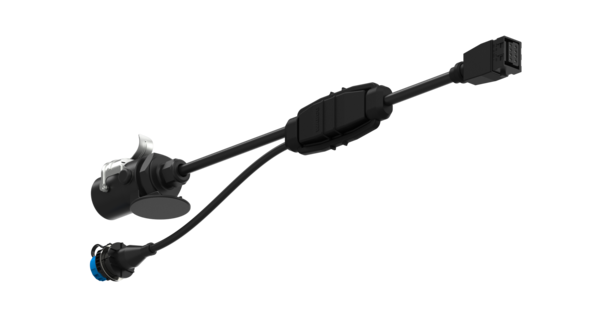

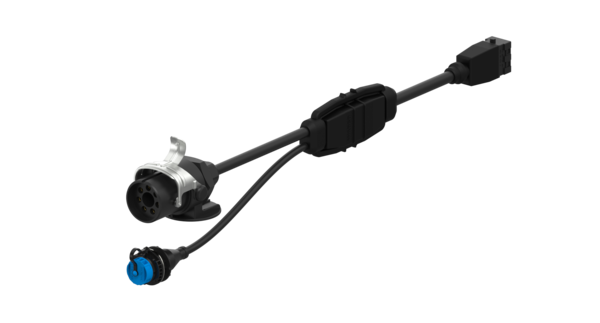

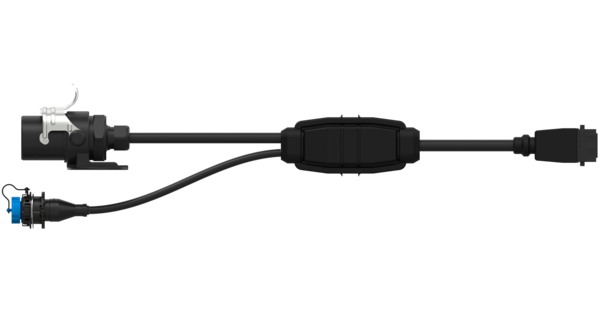

Connecting Cable
Part Number: 4492440480
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |

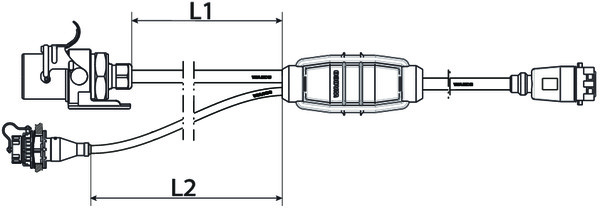

| Cable end (left side of diagram) | Socket ISO 7638 7-pin + diagnosis socket with blue cap 7-pin |
| Cable end (right side of diagram) | X1 power 8-pin |
| Calculated Volume (dm³) | 13.7731 |
| Length L1 | 3.00 m |
| Length L2 | 1.0 m |
| Product category | Device |
| Technical specification | OE specification |
| GTIN | 04057875200505 |
| Size (mm x mm x mm) | 354 x 393 x 99 |
| UPC | 193133295365 |
| Weight (kg) | 1.746 |
| Weight (lb) | 3.8493 |
