Description

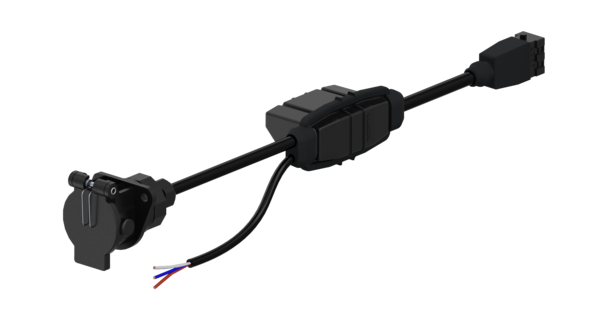

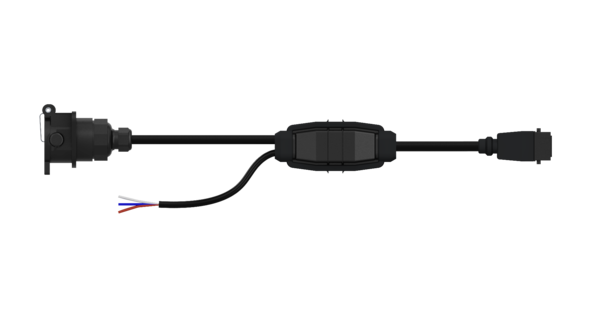

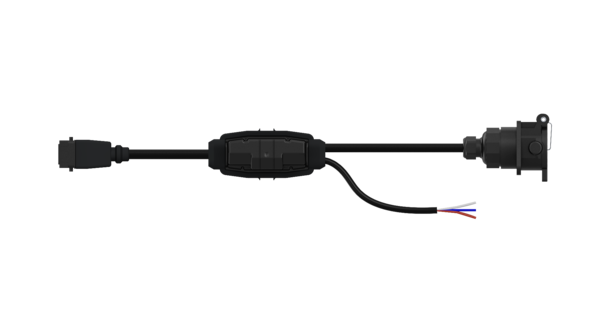

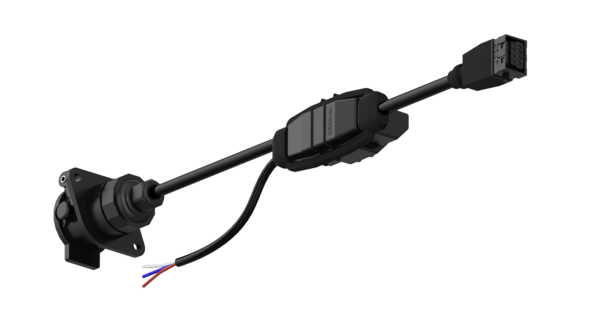

Connecting Cable
Part Number: 4491343370
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |

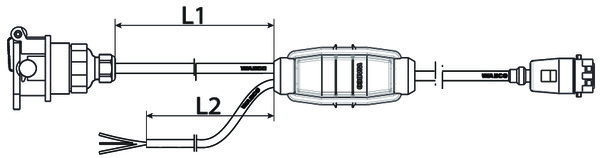

| Cable end (left side of diagram) | Socket ISO 7638 7-pin + open 3-strand (2 x 2.5 mm², 1 x 1.5 mm²) |
| Cable end (right side of diagram) | X1 power 8-pin |
| Calculated Volume (dm³) | 16.9446 |
| Length L1 | 12.00 m |
| Length L2 | 12.0 m |
| Product category | Device |
| Technical specification | OE specification |
| GTIN | 04057875200147 |
| Size (mm x mm x mm) | 408 x 349 x 119 |
| UPC | 193133294962 |
| Weight (kg) | 5.054 |
| Weight (lb) | 11.142 |
OEM Cross References
| Brand | Reference No |
|---|---|
| NOOTEBOOM | 3311525 |
| NOOTEBOOM | 4020642 |
| SCANIA | 2091160 |
