Description
Connecting Cable
Part Number: 4494250300
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |

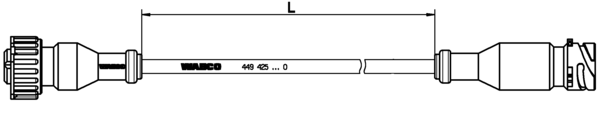

| Cable end (left side of diagram) | Coupling socket 7-pin |
| Cable end (right side of diagram) | Coupling connector 7-pin |
| Calculated Volume (dm³) | 5.6444 |
| Electrical connection | Bayonet DIN 72 585 A1-3.1-Sn/K1 |
| Length | 3 m |
| Product category | Device |
| Protection class | IP 6K7, IP 6K9K – ISO/DIS 20653, DIN 40050-T9 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875202233 |
| Size (mm x mm x mm) | 370 x 339 x 45 |
| UPC | 193133440451 |
| Weight (kg) | 0.287 |
| Weight (lb) | 0.632726 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FREIGHTLINER | TDAS4494250300 |
| GOLDHOFER | 171555 |
| KENWORTH | S449-425-030-0 |
| KÖGEL | 6502222 |
| LECITRAILER | 4302118 |
| MACK | 6300-4494250300 |
| MERITOR | S4494250300 |
| NOOTEBOOM | 3413341 |
| PETERBILT | S449-425-030-0 |
| VANGUARD | 2ABS00115 |
| VOLVO | 2S4494250300 |
| VOLVO | 2S449 425 030 0 |
| VOLVO | WAB4494250300 |
| WABASH | 10800491 |
