Description

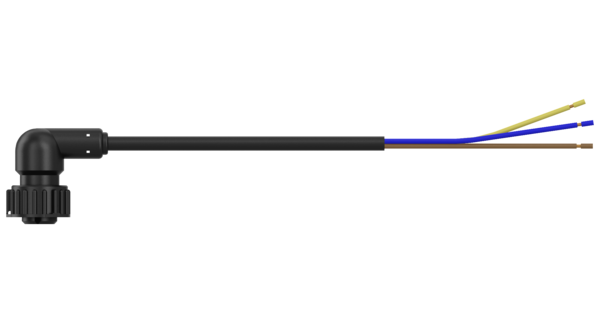

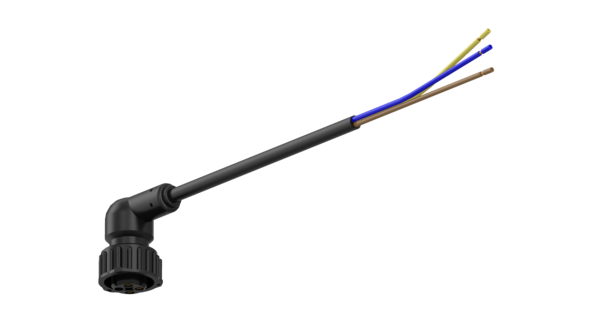

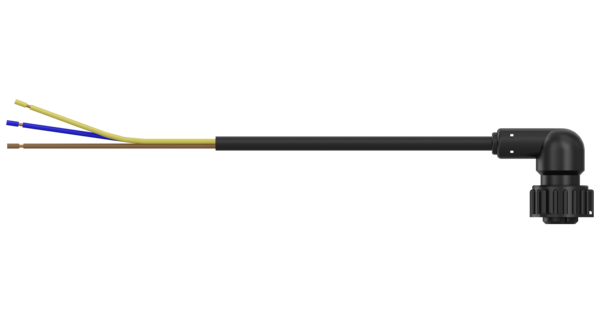

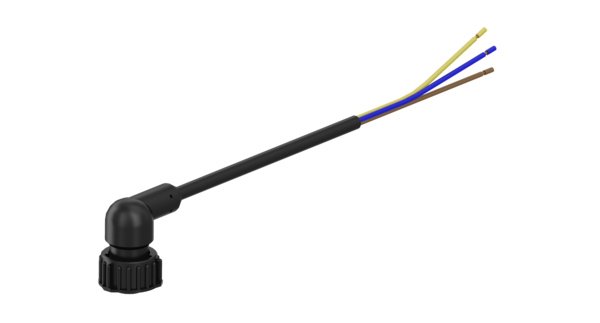

Connecting Cable
Part Number: 4495130900
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | Motor vehicle |

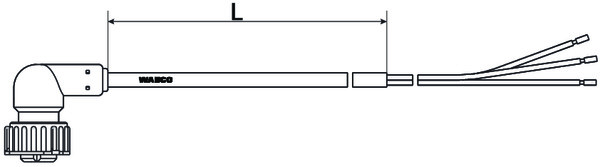

| Cable end (left side of diagram) | Bayonet socket ISO 15170-B1-3.1-Sn/K1 |
| Cable end (right side of diagram) | Open 3-Strand with push-on contacts 3 x 1.0 mm² |
| Calculated Volume (dm³) | 5.1035 |
| Length | 9 m |
| Ports | ABS Modulator |
| Product category | Device |
| Technical specification | OE specification |
| GTIN | 04057875203018 |
| Size (mm x mm x mm) | 371 x 362 x 38 |
| UPC | 193133296508 |
| Weight (kg) | 0.506 |
| Weight (lb) | 1.1155 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ASHOK LEYLAND | 446102017 |
| FAUN | 99707006711 |
| FAW | S3550370-6S |
| FAW | S3550375-6S |
| IRISBUS | 5801115885 |
| IVECO | 5801115885 |
| IVECO | 35503412WA |
| LIEBHERR | 11182902 |
| SHAANXI | DZ9100770655 |
| VAN HOOL | 10992632 |
