Description

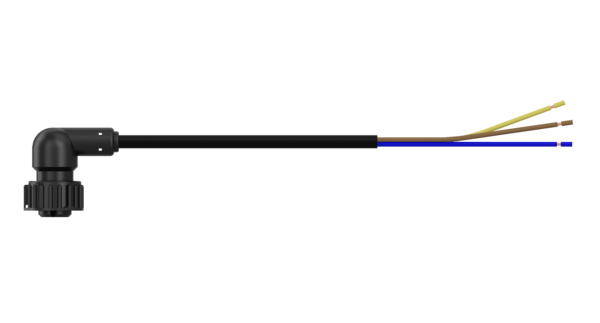

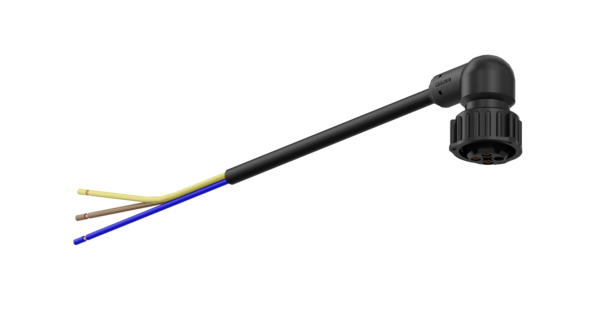

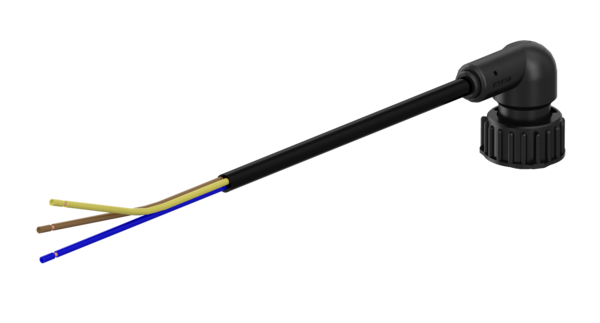

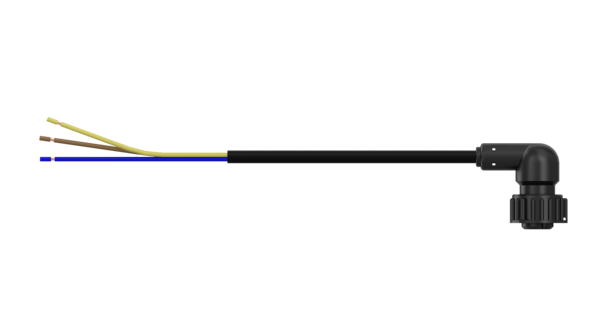

Connecting Cable
Part Number: 4495130800
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | Motor vehicle |

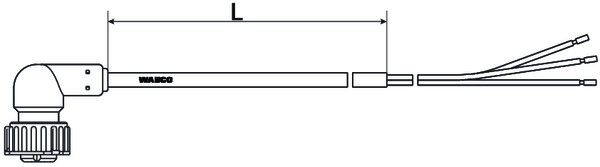

| Cable end (left side of diagram) | Bayonet socket ISO 15170-B1-3.1-Sn/K1 |
| Cable end (right side of diagram) | Open 3-Strand with push-on contacts 3 x 1.0 mm² |
| Calculated Volume (dm³) | 5.161 |
| Length | 8 m |
| Ports | ABS Modulator |
| Product category | Device |
| Technical specification | OE specification |
| GTIN | 04057875202950 |
| Size (mm x mm x mm) | 354 x 324 x 45 |
| UPC | 193133297314 |
| Weight (kg) | 0.454 |
| Weight (lb) | 1 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ASHOK LEYLAND | 446102041 |
| ISUZU | DG477000040 |
| LIEBHERR | 11182901 |
| OTOKAR | 12E0008812AB |
| SHAANXI | DZ9100770653 |
| VAN HOOL | 10674231 |
