Description

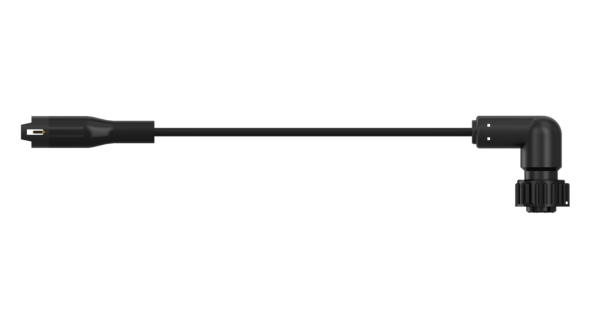

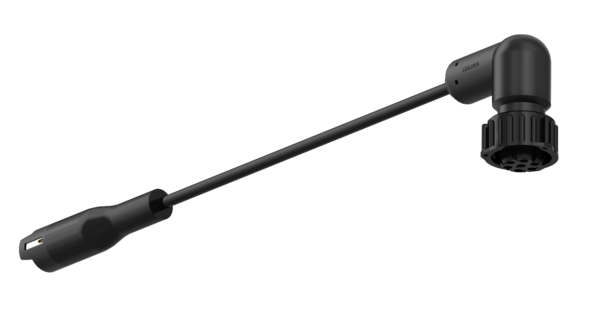

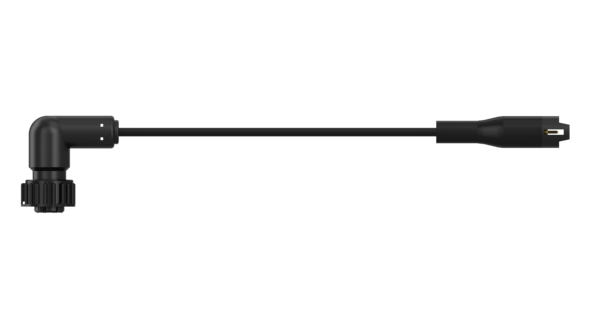

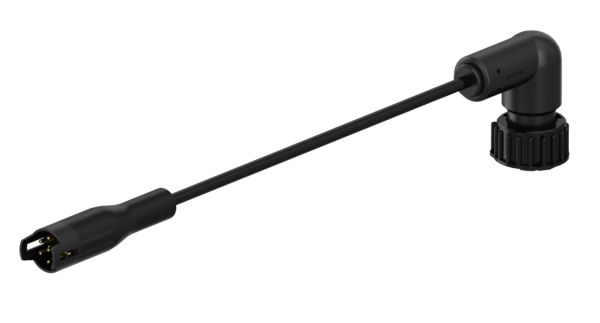

Connecting Cable
Part Number: 8946073900
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |

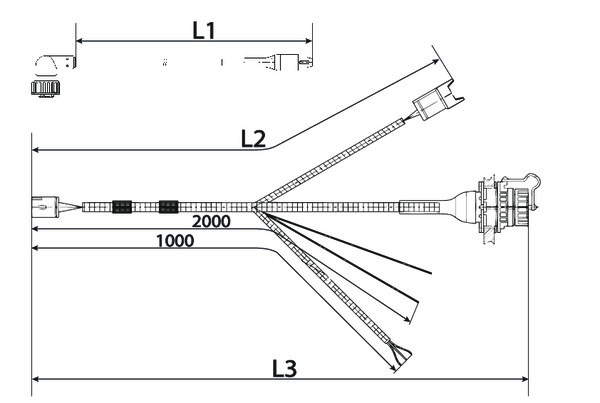

| Cable end (left side of diagram) | Bayonet socket 7-pin |
| Cable end (right side of diagram) | Plug Display + diagnosis socket with blue cap 7-pin + open 5-strand 5 x 0.5 mm² |
| Calculated Volume (dm³) | 7.43 |
| Length L1 | 9.00 m |
| Length L2 | 2.5 m |
| Length L3 | 2 m |
| Product category | Device |
| Technical specification | OE specification |
| GTIN | 04057875264101 |
| Size (mm x mm x mm) | 364 x 324 x 63 |
| UPC | 193133446712 |
| Weight (kg) | 1.317 |
| Weight (lb) | 2.9035 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1519709 |
| FREIGHTLINER | WAB8946073900 |
| IRISBUS | 0006041301 |
| IVECO | 41045681 |
| LANGENDORF | 1269849 |
| LOHR | A05101452 |
| MAN | 88254266008 |
| RENAULT | 5021178894 |
| SCHMITZ CARGOBULL | 1008913 |
| VAN HOOL | 10947817 |
