Description
Connecting Cable
Part Number: 4493762500
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |

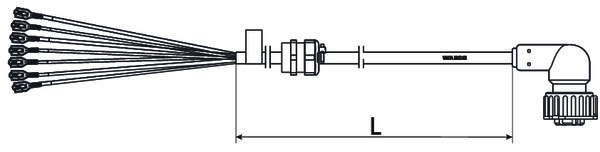

| Cable end (left side of diagram) | open 7-strand with push-on contacts and PG screw connection 7 x 0.5 mm² |
| Cable end (right side of diagram) | Bayonet socket 7-pin |
| Calculated Volume (dm³) | 13.1608 |
| Length | 25 m |
| Product category | Component |
| Technical specification | OE specification |
| GTIN | 04057875201687 |
| Size (mm x mm x mm) | 365 x 357 x 101 |
| UPC | 193133296188 |
| Weight (kg) | 2.851 |
| Weight (lb) | 6.2854 |
