Description

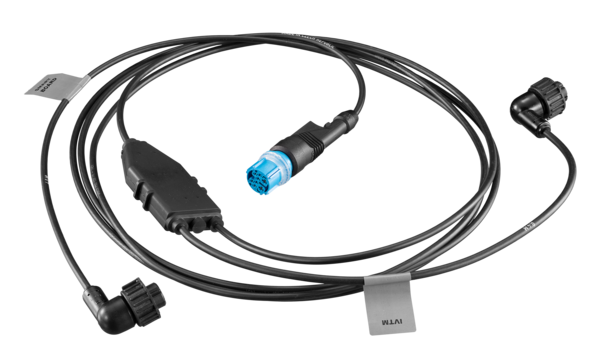

Connecting Cable
Part Number: 4499161820
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | SmartBoard + IVTM: Trailer EBS E Modulator |

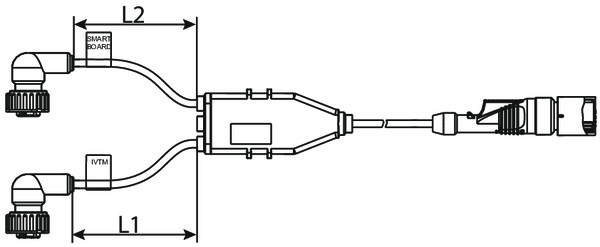

| Cable end (left side of diagram) | 2 x bayonet socket 7-pin |
| Cable end (right side of diagram) | Code C 8-pin |
| Calculated Volume (dm³) | 4.568 |
| Length | 400 mm |
| Length L1 | 0.40 m |
| Length L2 | 4.0 m |
| Product category | Device |
| Technical specification | OE specification |
| GTIN | 04057875206255 |
| Size (mm x mm x mm) | 339 x 385 x 35 |
| UPC | 193133300250 |
| Weight (kg) | 0.381 |
| Weight (lb) | 0.83996 |
OEM Cross References
| Brand | Reference No |
|---|---|
| SCHMITZ CARGOBULL | 1045767 |
