Description

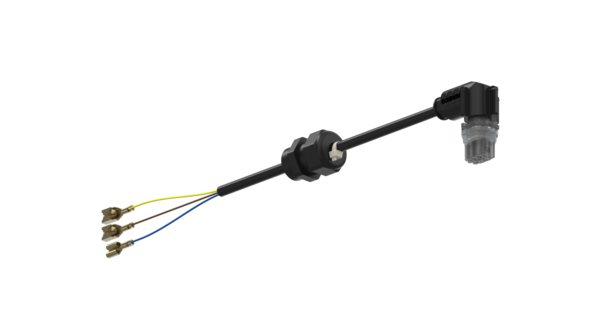

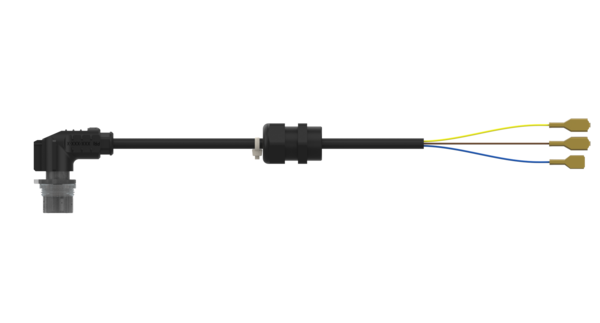

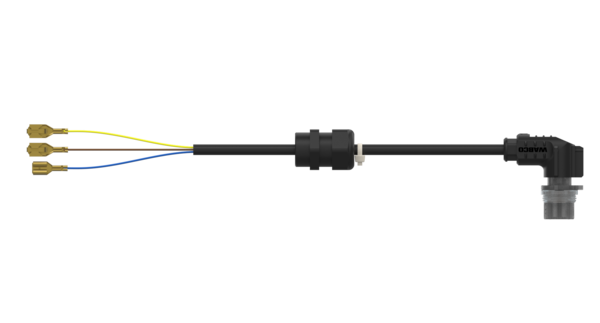

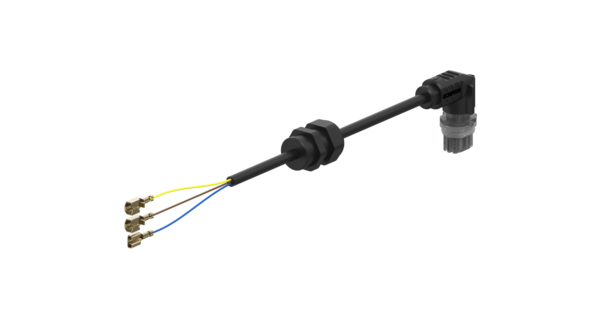

Connecting Cable
Part Number: 4494380500
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | For EBS E (ECAS electronics 4460550660) |

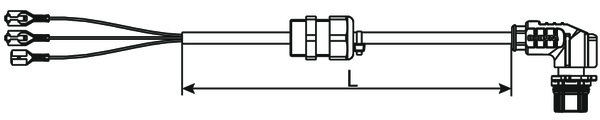

| Cable end (left side of diagram) | Open 3-strand with push-on contacts and PG screw connection 3 x 1.00 mm² |
| Cable end (right side of diagram) | Code B 4-pin |
| Calculated Volume (dm³) | 3.8753 |
| Length | 5 m |
| Product category | Device |
| Technical specification | OE specification |
| GTIN | 04057875202394 |
| Size (mm x mm x mm) | 347 x 349 x 32 |
| UPC | 193133296812 |
| Weight (kg) | 0.298 |
| Weight (lb) | 0.65698 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FAYMONVILLE | 200284 |
| LANGENDORF | 1273525 |
