Description
Connecting Cable
Part Number: 4493820600
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | For EBS D (ECAS electronics 4460550660) |

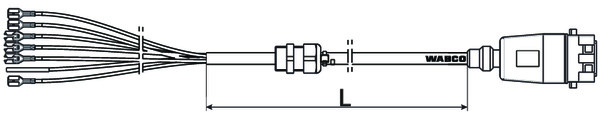

| Cable end (left side of diagram) | Open 7-strand with 6 push-on contacts and PG screw connection (3 x 1.5 mm², 4 x 0.5 mm²) |
| Cable end (right side of diagram) | X2 diagnosis 8-pin |
| Calculated Volume (dm³) | 6.935 |
| Length | 6 m |
| Port threads | PG11 |
| Ports | Power supply line EBS – ECAS |
| Product category | Device |
| Technical specification | OE specification |
| Type | ECAS 446 055 066 0 |
| GTIN | 7895851077188 |
| Size (mm x mm x mm) | 380 x 365 x 50 |
| UPC | 193133296317 |
| Weight (kg) | 0.809 |
| Weight (lb) | 1.7835 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DOLL | 7091758 |
| KODAIRA | VS70000173 |
| LANGENDORF | 1243941 |
| SCANIA | 2091215 |
| VOLVO | WA4493820600 |
