Description

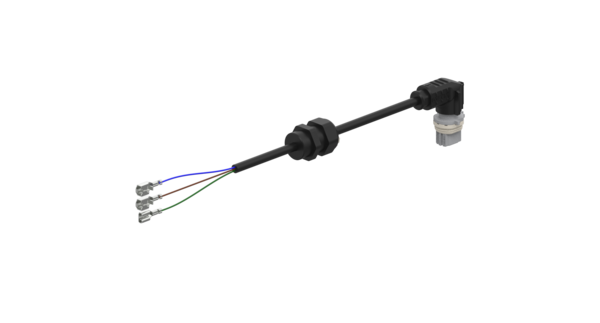

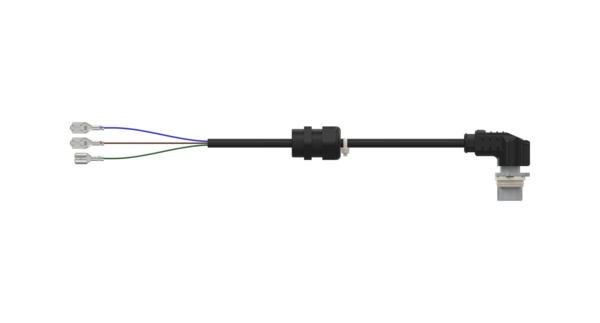

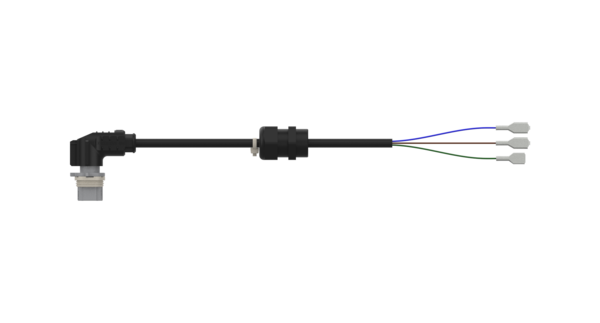

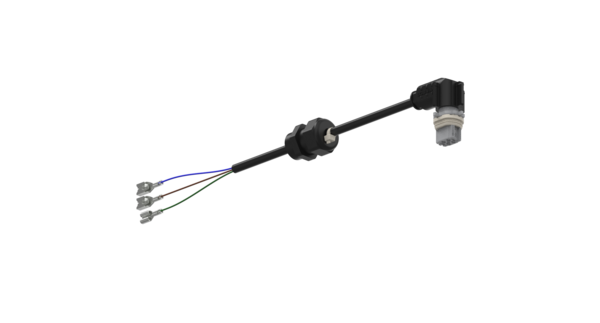

Connecting Cable
Part Number: 4494380800
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | For EBS E (ECAS electronics 4460550660) |

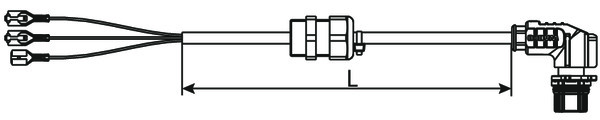

| Cable end (left side of diagram) | Open 3-strand with push-on contacts and PG screw connection 3 x 1.00 mm² |
| Cable end (right side of diagram) | Code B 4-pin |
| Calculated Volume (dm³) | 5.897 |
| Length | 8 m |
| Product category | Device |
| Technical specification | OE specification |
| GTIN | 04057875202356 |
| Size (mm x mm x mm) | 362 x 362 x 45 |
| UPC | 193133296836 |
| Weight (kg) | 0.454 |
| Weight (lb) | 1.0009 |
