Description

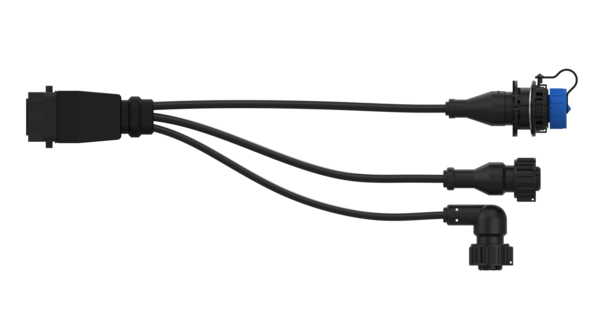

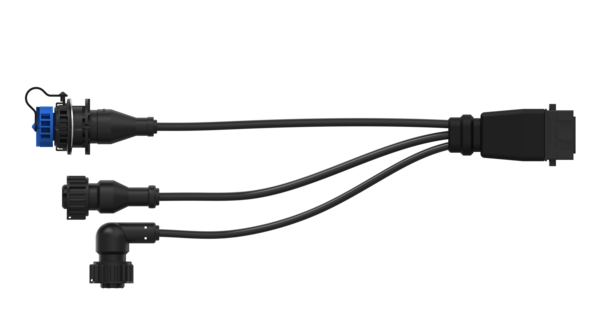

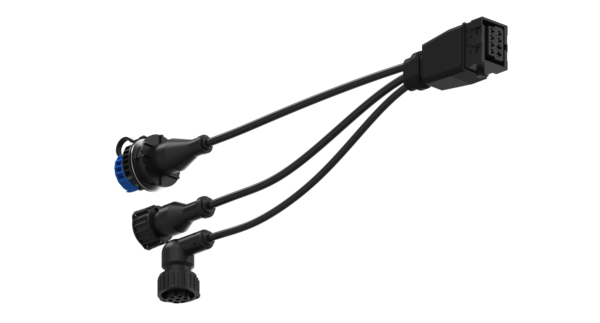

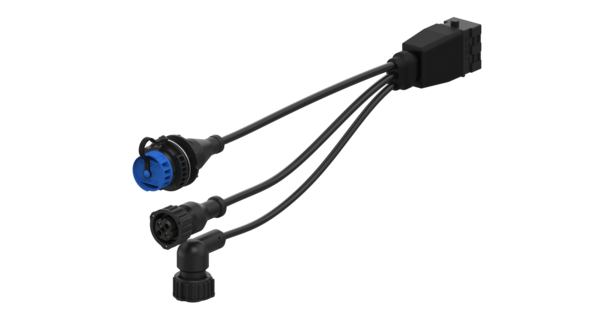

Connecting Cable
Part Number: 4495541130
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |

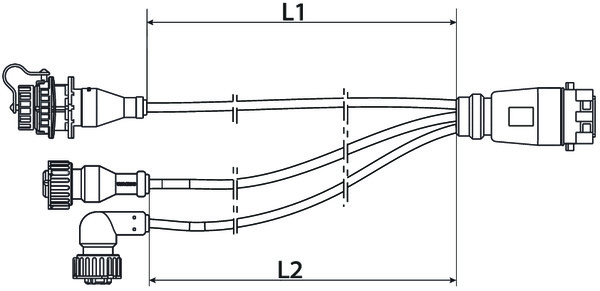

| Cable end (left side of diagram) | Diagnosis socket with blue cap 7-pin + bayonet socket ISO 15170-B1-2.1-Sn/K1 4-pin + bayonet socket 7-pin |
| Cable end (right side of diagram) | X2 diagnosis 8-pin |
| Calculated Volume (dm³) | 4.544 |
| Length L1 | 6.00 m |
| Length L2 | 2.0 m |
| Product category | Device |
| Technical specification | OE specification |
| GTIN | 04057875203407 |
| Size (mm x mm x mm) | 331 x 286 x 48 |
| Weight (kg) | 0.614 |
OEM Cross References
| Brand | Reference No |
|---|---|
| SCANIA | 2091272 |
