Description
Connecting Cable
Part Number: 4492721200
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | EBS |

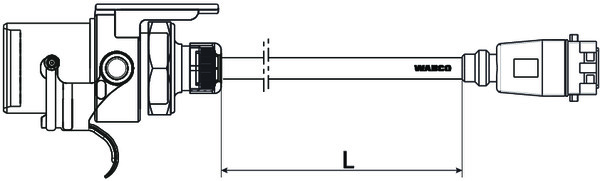

| Cable end (left side of diagram) | Connector ISO 7638 7-pin |
| Cable end (right side of diagram) | Power 7-pin |
| Calculated Volume (dm³) | 11.515 |
| Length | 12 m |
| Ports | Power supply line ISO 24 V |
| Product category | Device |
| Technical specification | OE specification |
| Type | Drawbar |
| GTIN | 04057875200581 |
| Size (mm x mm x mm) | 408 x 294 x 96 |
| UPC | 193133295426 |
| Weight (kg) | 3.113 |
| Weight (lb) | 6.863 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 867632 |
| DAF | 0867632 |
| DOLL | 7060958 |
| FELDBINDER | 008850 |
| GOLDHOFER | 167271 |
| KRONE | 5814030 |
| KRONE | 5058140300 |
| KRONE | 505814030 |
| KÖGEL | 339616 |
| KÖGEL | 3396160 |
| LANGENDORF | 1255534 |
| LIEBHERR | 10167576 |
| LOHR | A05101333 |
| NOOTEBOOM | 18313 |
| ORTHAUS | 580320 |
| SCANIA | 2091185 |
| SCHMITZ CARGOBULL | INSO160058 |
| SCHMITZ CARGOBULL | 1060764 |
| SCHWARZMÜLLER | 44143 |
| ZORZI | 1070038 |
