Description

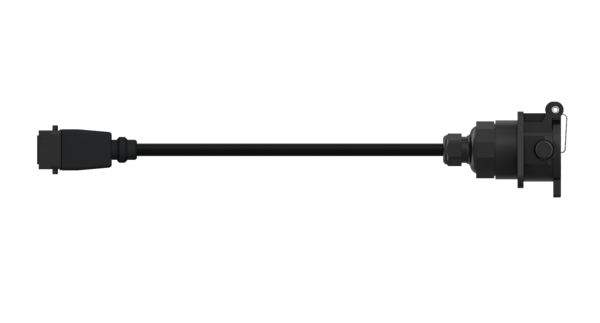

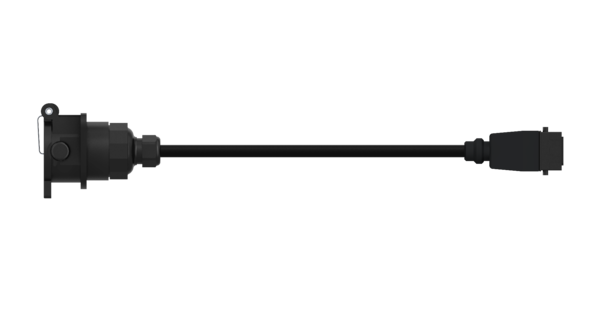

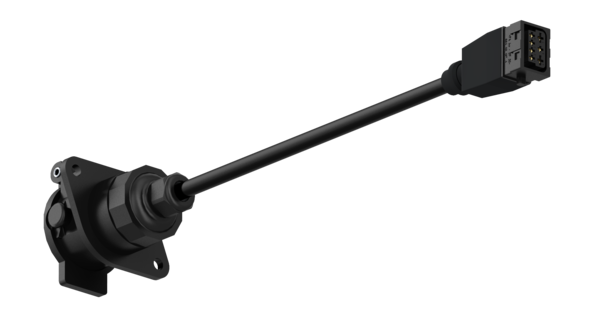

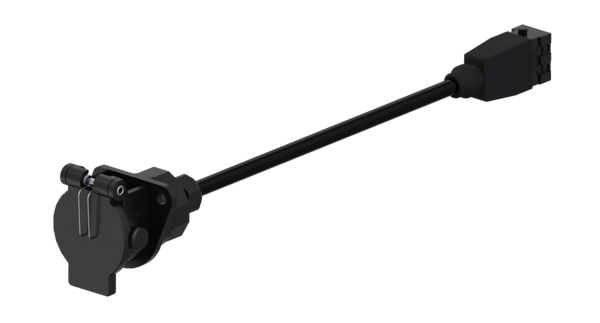

Connecting Cable
Part Number: 4491721500
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | EBS |

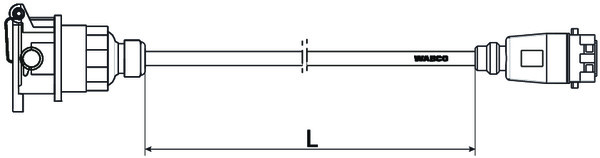

| Cable end (left side of diagram) | Socket ISO 7638 7-pin |
| Cable end (right side of diagram) | Power 7-pin |
| Calculated Volume (dm³) | 15.5252 |
| Length | 15 m |
| Ports | Power supply line ISO 24 V |
| Product category | Device |
| Technical specification | OE specification |
| Type | Semi trailer |
| GTIN | 04057875200239 |
| Size (mm x mm x mm) | 433 x 355 x 101 |
| UPC | 193133295082 |
| Weight (kg) | 3.758 |
| Weight (lb) | 8.285 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1506054 |
| FAYMONVILLE | 13404 |
| FELDBINDER | 084124 |
| GOLDHOFER | 165745 |
| KRONE | 515005938 |
| KÖGEL | 337550 |
| LOHR | A05101405 |
| MAN | N2955010105 |
| NOOTEBOOM | 1615532 |
| NOOTEBOOM | 16139 |
| PACCAR | 1506054 |
| SCANIA | 1934785 |
| SCHMITZ CARGOBULL | 053480 |
| SCHMITZ CARGOBULL | 53480 |
| SCHWARZMÜLLER | 45572 |
| VAN HOOL | 10744287 |
