Description

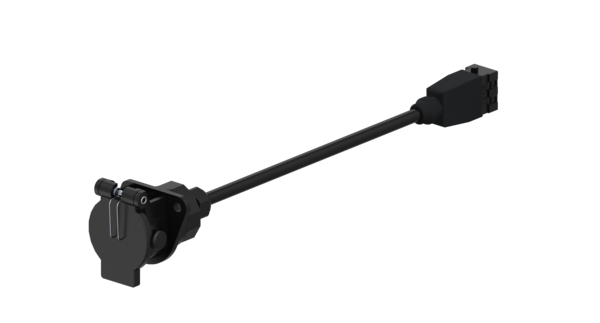

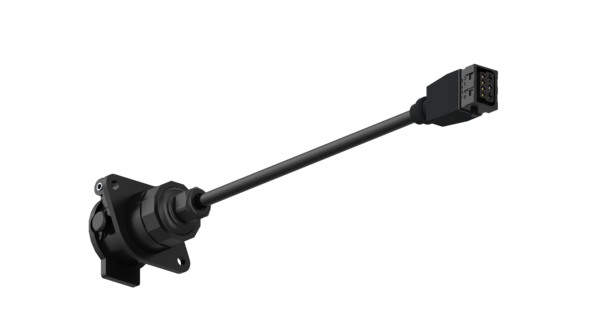

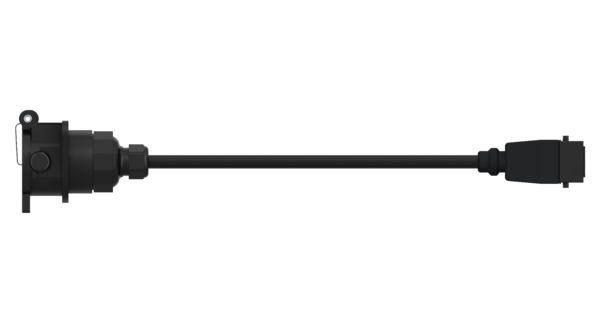

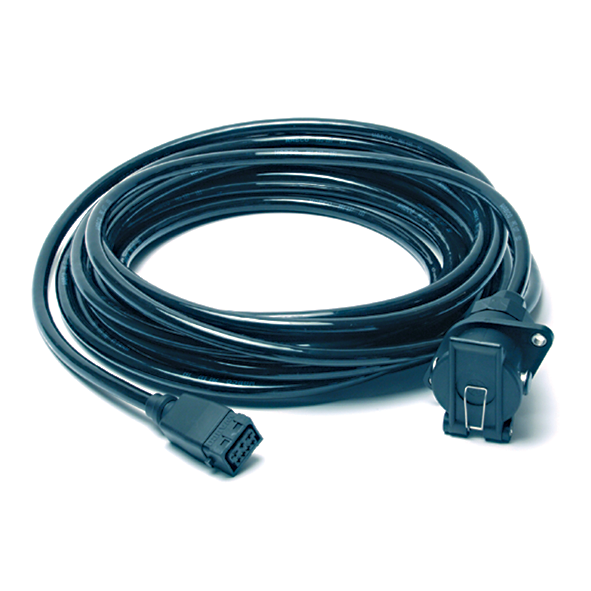

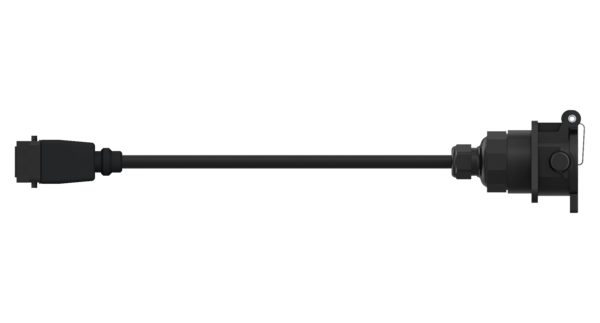

Connecting Cable
Part Number: 4491721200
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | EBS |

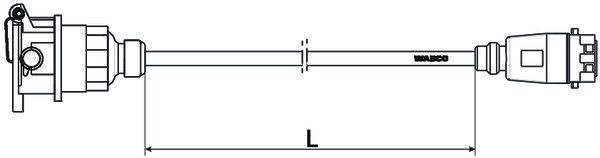

| Cable end (left side of diagram) | Socket ISO 7638 7-pin |
| Cable end (right side of diagram) | Power 7-pin |
| Calculated Volume (dm³) | 14.5768 |
| Length | 12 m |
| Ports | Power supply line ISO 24 V |
| Product category | Device |
| Technical specification | OE specification |
| Type | Semi trailer |
| GTIN | 7895851036840 |
| Size (mm x mm x mm) | 409 x 405 x 88 |
| UPC | 193133295075 |
| Weight (kg) | 3.104 |
| Weight (lb) | 6.8431 |
OEM Cross References
| Brand | Reference No |
|---|---|
| BENALU | M05932202 |
| DAF | 1518035 |
| DOLL | 7048569 |
| FAYMONVILLE | 31989 |
| FELDBINDER | 065911 |
| FRUEHAUF | MO59322 |
| FRUEHAUF | M05932202 |
| FRUEHAUF | M059322 |
| FRUEHAUF | 7385-286 |
| GUERRA | 35276 |
| HYUNDAI | 915227K010 |
| HYUNDAI | 915227K000 |
| HYUNDAI | 91522 7K000 |
| HYUNDAI | 91522 7K010 |
| KODAIRA | VS70000171 |
| KRONE | 5818311 |
| KRONE | 5058183110 |
| KRONE | 505818311 |
| KÖGEL | 69086 |
| LANGENDORF | 1110827 |
| LECITRAILER | 4300640 |
| MERCEDES-BENZ | Q4491721200 |
| NOOTEBOOM | 1203665 |
| NOOTEBOOM | 17079 |
| ORTHAUS | 508056 |
| OTOKAR | AIF1173 |
| PACCAR | 1518035 |
| SCANIA | 1788949 |
| SCHMITZ CARGOBULL | 053405 |
| SCHMITZ CARGOBULL | SO53405 |
| SCHMITZ CARGOBULL | 53405 |
| SCHWARZMÜLLER | 19075 |
| TIRSAN | 21150110018 |
| VAN HOOL | 10744285 |
| VOLVO | WA4491721200 |
| ZORZI | 1070037 |
