Description

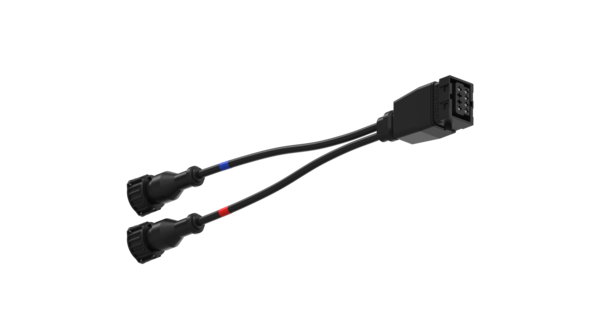

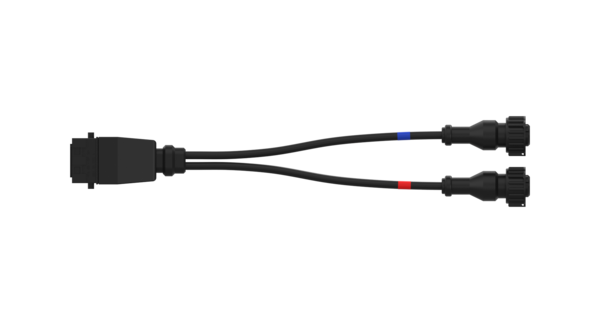

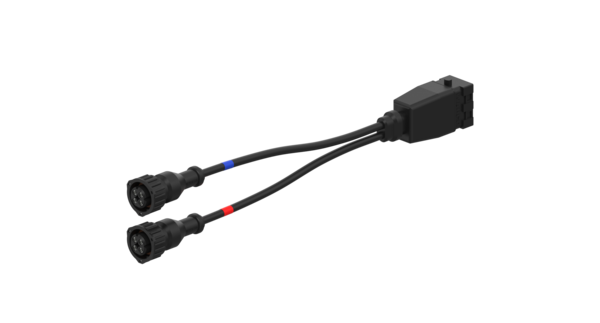

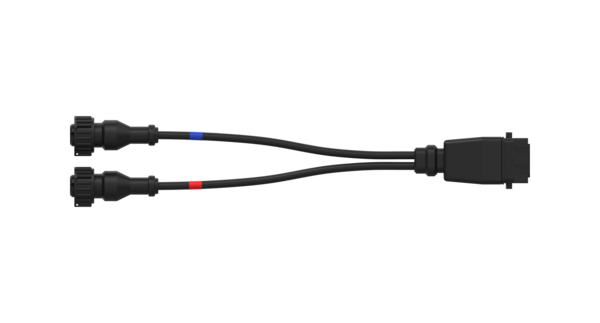

Connecting Cable
Part Number: 4497042950
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |

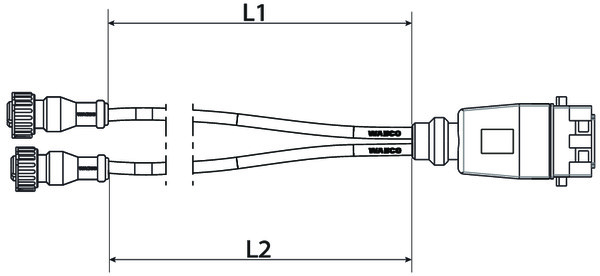

| Cable end (left side of diagram) | 2x bayonet socket DIN 72585-B1-4.1-Sn/K1 4-pin |
| Cable end (right side of diagram) | X31 ramp approach support 8-pin |
| Calculated Volume (dm³) | 6.4233 |
| Length L1 | 8.00 m |
| Length L2 | 8.0 m |
| Product category | Device |
| Technical specification | OE specification |
| GTIN | 04057875204145 |
| Size (mm x mm x mm) | 388 x 301 x 55 |
| UPC | 193133297789 |
| Weight (kg) | 0.95 |
| Weight (lb) | 2.0944 |
OEM Cross References
| Brand | Reference No |
|---|---|
| KRONE | 505820507 |
| KÄSSBOHRER | GT142370 |
| KÖGEL | 69666 |
| TIRSAN | GT142370 |
