Description
Connecting Cable
Part Number: 4497321000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | ECAS |

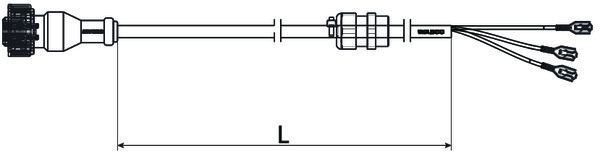

| Cable end (left side of diagram) | Bayonet socket ISO 72585-B1-3.1-Sn/K1 4-pin |
| Cable end (right side of diagram) | Open with push-on contacts and PG screw connection 3-Strand 3 x 0.5 mm² |
| Calculated Volume (dm³) | 5.3114 |
| Length | 10 m |
| Port threads | PG11 |
| Ports | Pressure Sensor 441 040 007 0 |
| Product category | Device |
| Technical specification | OE specification |
| Type | Trailer |
| GTIN | 7895851055292 |
| Size (mm x mm x mm) | 386 x 344 x 40 |
| UPC | 193133299219 |
| Weight (kg) | 0.463 |
| Weight (lb) | 1.0207 |
OEM Cross References
| Brand | Reference No |
|---|---|
| IRIZAR | 8015561 |
| PACCAR | 1528722 |
