Description
Connecting Cable
Part Number: 4496210100
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |

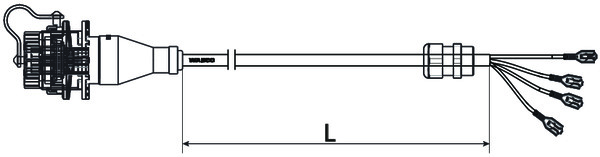

| Cable end (left side of diagram) | Diagnosis socket with blue cap 7-pin |
| Cable end (right side of diagram) | Open 4-Strand with push-on contacts and PG screw connection 4 x 1.0 mm² |
| Calculated Volume (dm³) | 3.6242 |
| Length | 1 m |
| Product category | Device |
| Technical specification | OE specification |
| GTIN | 04057875203735 |
| Size (mm x mm x mm) | 264 x 286 x 48 |
| UPC | 193133297918 |
| Weight (kg) | 0.154 |
| Weight (lb) | 0.33951 |
