Description

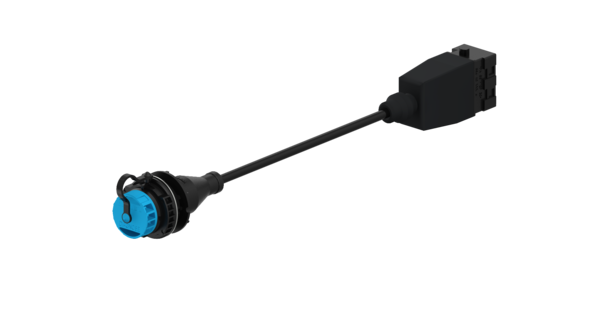

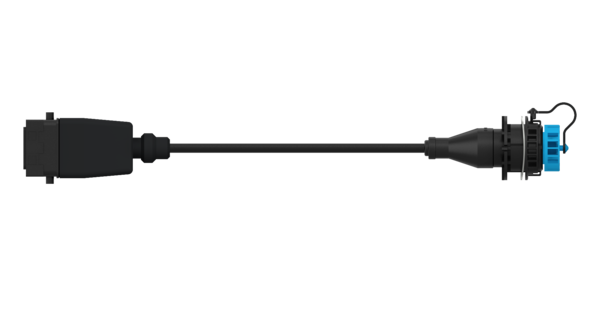

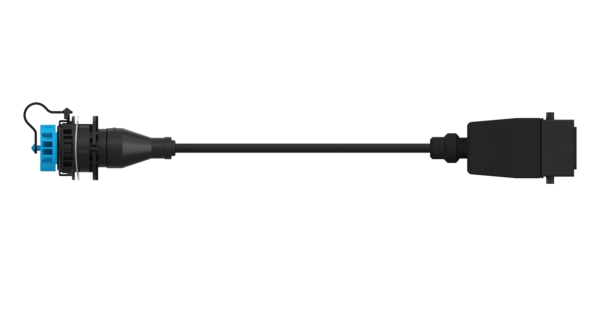

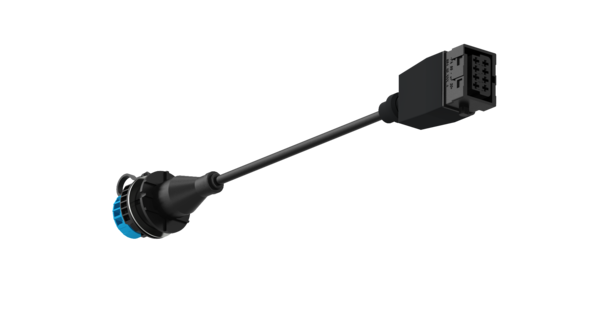

Connecting Cable
Part Number: 4496720300
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | EBS |

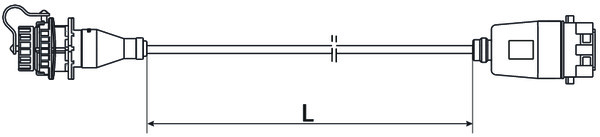

| Cable end (left side of diagram) | Diagnosis socket with blue cap 7-pin |
| Cable end (right side of diagram) | Diagnosis 8-pin |
| Calculated Volume (dm³) | 3.861 |
| Length | 3 m |
| Ports | Diagnosis |
| Product category | Device |
| Technical specification | OE specification |
| Total length | 3.0 m |
| Type | Diagnostic Connection |
| GTIN | 7895851039926 |
| Packaging size (mm x mm x mm) | 400 x 400 x 40 |
| Packaging volume (dm³) | 6.4 |
| Size (mm x mm x mm) | 300 x 286 x 45 |
| UPC | 193133441182 |
| Weight (kg) | 0.251 |
| Weight (lb) | 0.55336 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1506782 |
| DOLL | 7060281 |
| FAYMONVILLE | 123739 |
| FREIGHTLINER | TDAS4496720300 |
| GOLDHOFER | 165747 |
| GREAT DANE | 40502963 |
| HYUNDAI | 10019619 |
| KENWORTH | S449-672-030-0 |
| KÄSSBOHRER | GT140059 |
| KÖGEL | 341453 |
| KÖGEL | 3414530 |
| LANGENDORF | 1229080 |
| MAC TRAILER | 24900003 |
| MACK | 8235-S4496720300 |
| MACK | 6300-4496720300 |
| MANAC | 228010 |
| MERITOR | S4496720300 |
| PETERBILT | S449-672-030-0 |
| SCANIA | 1934805 |
| SCHMITZ CARGOBULL | 56807 |
| SCHMITZ CARGOBULL | 056807 |
| UTILITY TRAILER | 4496720300 |
| VOLVO | WA4496720300 |
| VOLVO | TDAS4496720300 |
| VOLVO | WAB4496720300 |
