Description

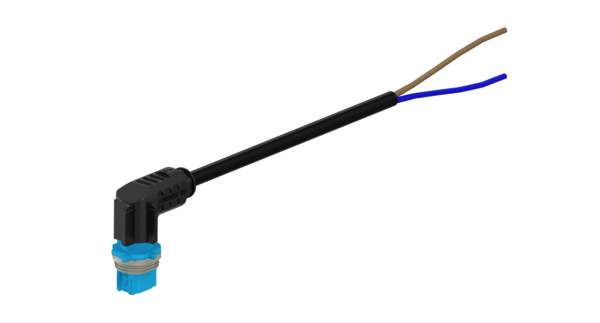

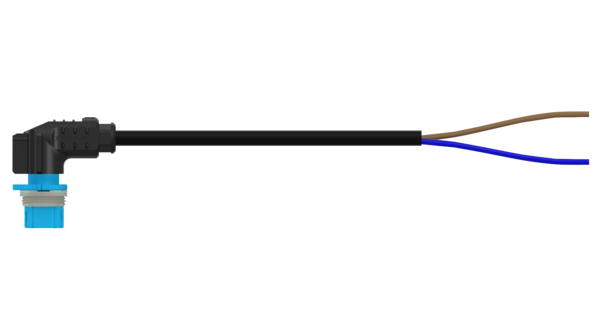

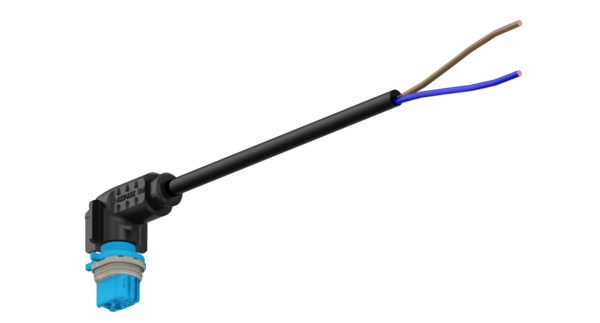

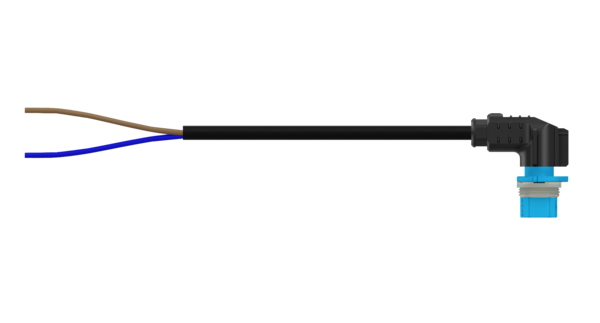

Connecting Cable
Part Number: 4493491000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | ISO 1185 (24N): Trailer EBS E |
| Cable end (left side of diagram) | Open 2-strand 2 x 1.5 mm² |
| Cable end (right side of diagram) | Code C 4-pin |
| Calculated Volume (dm³) | 3.8624 |

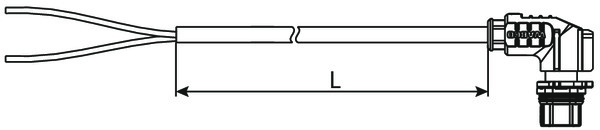

| Length | 10000 mm |
| Product category | Device |
| Technical specification | OE specification |
| GTIN | 04057875201182 |
| Size (mm x mm x mm) | 340 x 355 x 32 |
| UPC | 193133440154 |
| Weight (kg) | 0.607 |
| Weight (lb) | 1.3382 |
OEM Cross References
| Brand | Reference No |
|---|---|
| KENWORTH | S449-349-100-0 |
| KRONE | 515004984 |
| KRONE | 515021771 |
| KÖGEL | 6502501 |
| MACK | 6300-4493491000 |
| MERITOR | S4493491000 |
| PETERBILT | S449-349-100-0 |
| SCANIA | 2091202 |
| SCHMITZ CARGOBULL | 1152881 |
| VAN HOOL | 11065753 |
| VOLVO | WAB4493491000 |
