Description
Connecting Cable
Part Number: 4496181570
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |

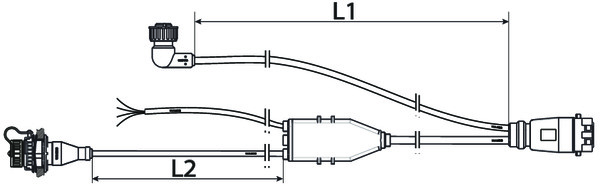

| Cable end (left side of diagram) | Bayonet socket ISO 15170-B1-3.1-Sn/K1 4-pin + open 4-strand 4 x 1.5 mm² + diagnosis socket with blue cap 7-pin |
| Cable end (right side of diagram) | X6 auxiliary plug 8-pin |
| Calculated Volume (dm³) | 11.58 |
| Length L1 | 12.00 m |
| Length L2 | 3.0 m |
| Product category | Device |
| Technical specification | OE specification |
| GTIN | 04057875203643 |
| Size (mm x mm x mm) | 415 x 393 x 71 |
| UPC | 193133297888 |
| Weight (kg) | 2.302 |
| Weight (lb) | 5.075 |
OEM Cross References
| Brand | Reference No |
|---|---|
| GOLDHOFER | 169423 |
