Description
Connecting Cable
Part Number: 4491243370
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |

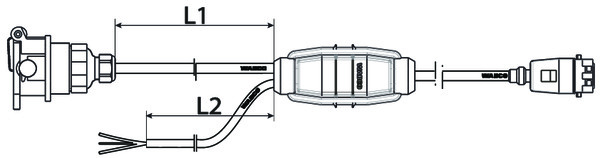

| Cable end (left side of diagram) | Socket ISO 7638 7-pin + open 3-strand (2 x 2.5 mm², 1 x 1.5 mm²) |
| Cable end (right side of diagram) | X1 power 8-pin |
| Calculated Volume (dm³) | 21.8104 |
| Comments | 24 N + ISO 7638 |
| Length L1 | 12.00 m |
| Length L2 | 12.0 m |
| Ports | Power supply line VCS 2 |
| Product category | Device |
| Technical specification | OE specification |
| Total length | 12.0 / 12.0 m |
| GTIN | 7895851048744 |
| Size (mm x mm x mm) | 400 x 398 x 137 |
| UPC | 193133293996 |
| Weight (kg) | 4.441 |
| Weight (lb) | 9.7907 |
OEM Cross References
| Brand | Reference No |
|---|---|
| BENALU | C00204001 |
| FRUEHAUF | C00204001 |
| KRONE | 5058213150 |
| KÖGEL | 6501233 |
| SCANIA | 2090407 |
