Description
Connecting Cable
Part Number: 4493743230
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | VCS II |

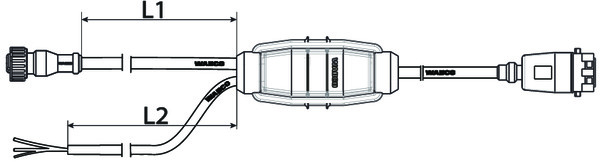

| Cable end (left side of diagram) | Coupling socket 5-pin + open 3-strand (2 x 2.5 mm², 1 x 1.5 mm²) |
| Cable end (right side of diagram) | X1 power 8-pin |
| Calculated Volume (dm³) | 15.596 |
| Length | 12000 mm |
| Length L1 | 1.00 m |
| Length L2 | 12.0 m |
| Ports | Power supply line ISO 24 V |
| Product category | Device |
| Technical specification | OE specification |
| GTIN | 7895851046245 |
| Size (mm x mm x mm) | 451 x 380 x 91 |
| UPC | 193133296201 |
| Weight (kg) | 2.154 |
| Weight (lb) | 4.74875 |
OEM Cross References
| Brand | Reference No |
|---|---|
| KRONE | 5818939 |
| KRONE | 5058189390 |
| NOMA | 9208209 |
| PACCAR | 0905442 |
| SCANIA | 2091212 |
