Description

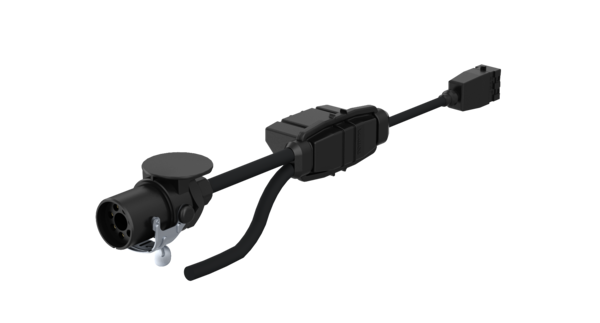

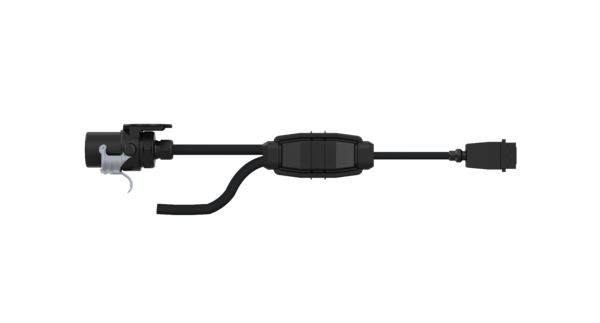

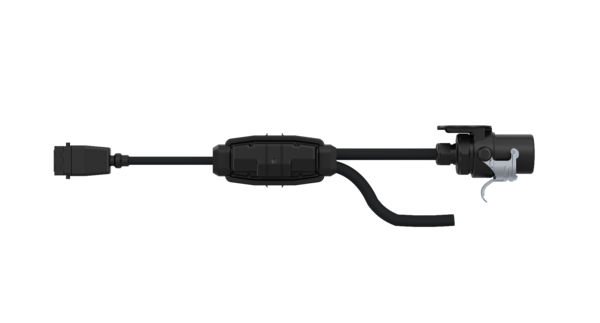

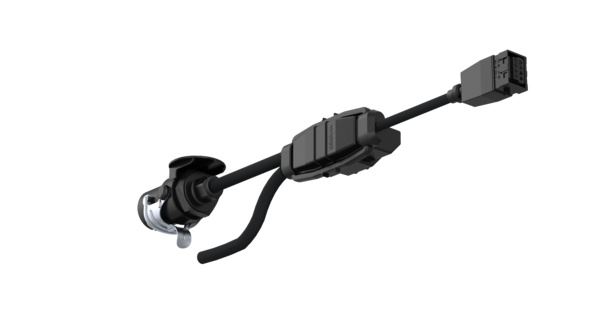

Connecting Cable
Part Number: 4492243370
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |

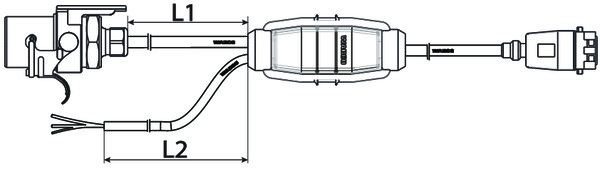

| Cable end (left side of diagram) | Plug ISO 7638 7-pin + open 3-strand (2 x 2.5 mm², 1 x 1.5 mm²) |
| Cable end (right side of diagram) | X1 power 8-pin |
| Calculated Volume (dm³) | 17.3538 |
| Length L1 | 12.00 m |
| Length L2 | 12.0 m |
| Product category | Device |
| Technical specification | OE specification |
| GTIN | 04057875200338 |
| Size (mm x mm x mm) | 404 x 355 x 121 |
| UPC | 193133295129 |
| Weight (kg) | 4.467 |
| Weight (lb) | 9.848 |
