Description

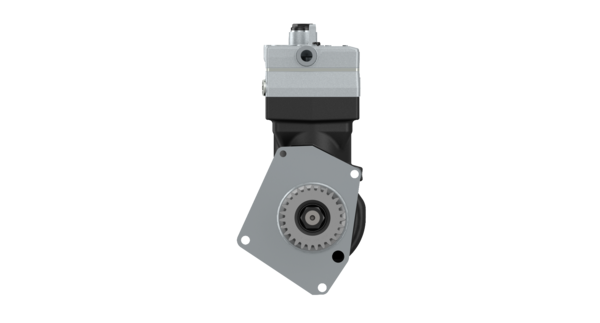

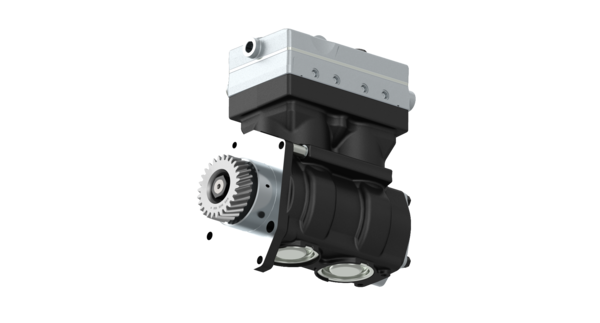

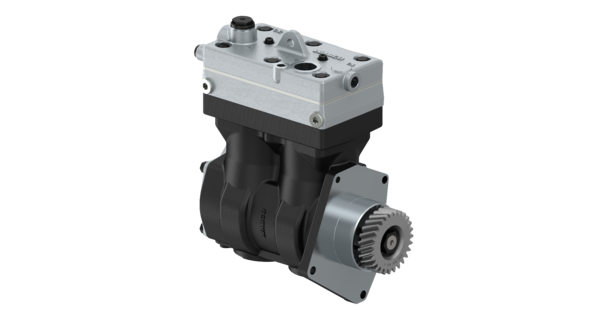

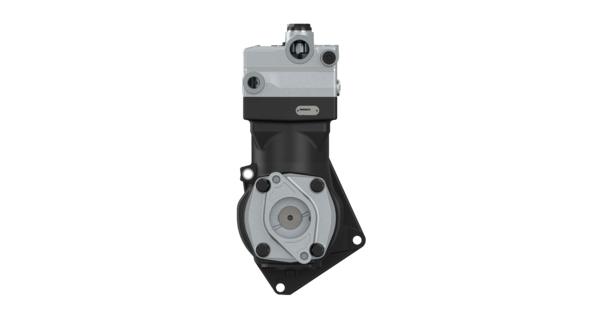

Compressor (Twin Cylinder)
Part Number: 9125101070
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 28.8 |
| Cooling | Water |
| Crankshaft thread | M20 x 1.5 |
| Lubrication | Lubrication supplied from engine |
| Max. operating pressure | 12.5 bar |
| Mounting | Flange mounting |
| Operating speed | 3000 (1/min) |
| Piston diameter | 85 mm |
| Piston stroke | 56 mm |
| Port thread 0 | M30 x 1.5 |
| Port thread 2 | M26 x 1.5 |
| Port thread 4 | M12 x 1.5 |
| Port thread 8.1 | Ø 4 mm |
| Port thread 8.2 | Ø 15.5 mm |
| Port thread 9 | M16 x 1.5 |
| Port thread 9.1 | M16 x 1.5 |
| Port thread 9.2 | M16 x 1.5 |
| Product category | Device |
| Swept volume (cm³) | 636 cm3 |
| Technical specification | OE specification |
| Temperature range | -40°C to +105°C |
| Type | Single Cylinder |
| GTIN | 4057875312765 |
| Size (mm x mm x mm) | 400 x 180 x 400 |
| UPC | 193133344629 |
| Weight (kg) | 21.74 |
| Weight (lb) | 47.93 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MERCEDES-BENZ | A4601300015 |
