Description

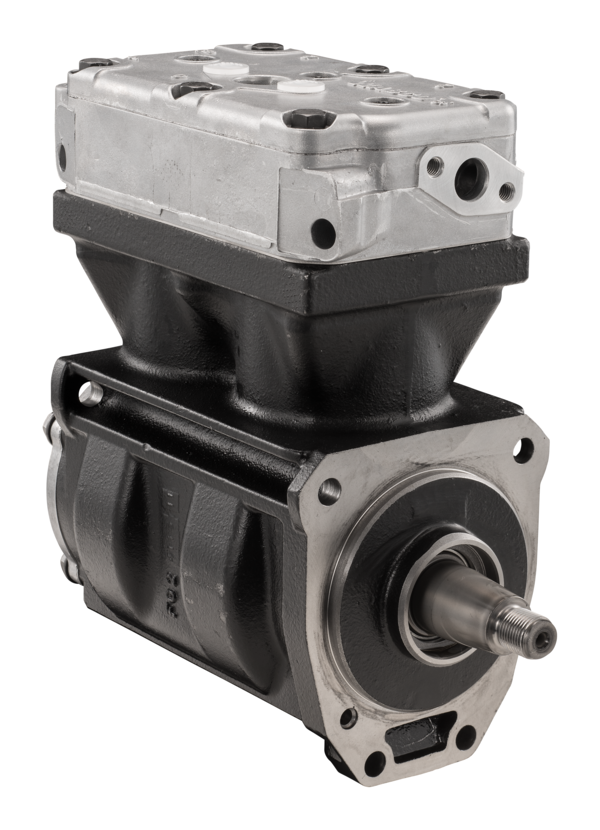

Compressor (Twin Cylinder)
Part Number: 9115065040
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 19.9431 |
| Cooling | Water |
| Crankshaft thread | M18 x 1.5 |
| Lubrication | Lubrication supplied from engine |
| Max. operating pressure | 12.5 bar |
| Mounting | Flange mounting |
| Operating speed | 3000 (1/min) |
| Piston diameter | 75.0 mm |
| Piston stroke | 26 mm |
| Port thread 0 | Ø 24 mm |
| Port thread 2 | Ø 16 mm |
| Port thread 8.1 | Ø 9 mm |
| Port thread 9.1 | Ø 16 mm |
| Port thread 9.2 | Ø 16 mm |
| Product category | Device |
| Swept volume (cm³) | 442 cm3 |
| Technical specification | OE specification |
| Type | Twin Cylinder |
| GTIN | 04057875273387 |
| Size (mm x mm x mm) | 327 x 316 x 193 |
| UPC | 193133342946 |
| Weight (kg) | 14.822 |
| Weight (lb) | 32.6769 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1519083 |
| IVECO | 500329471 |
| VOLVO | 8150407 |
