Description

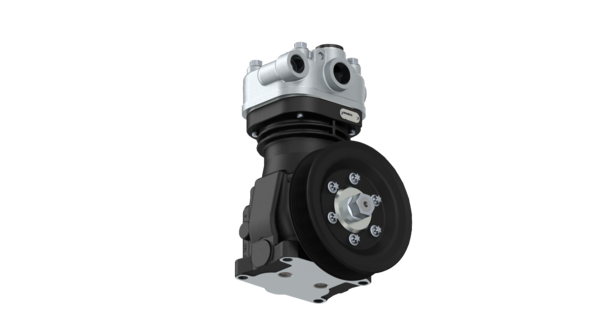

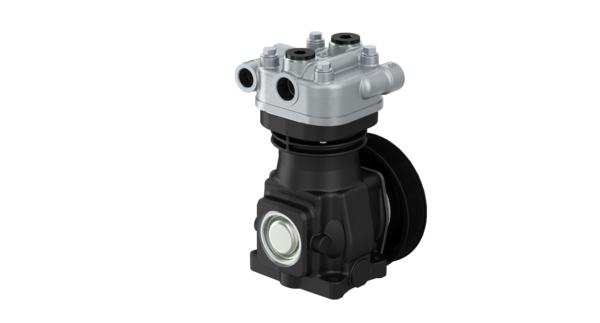

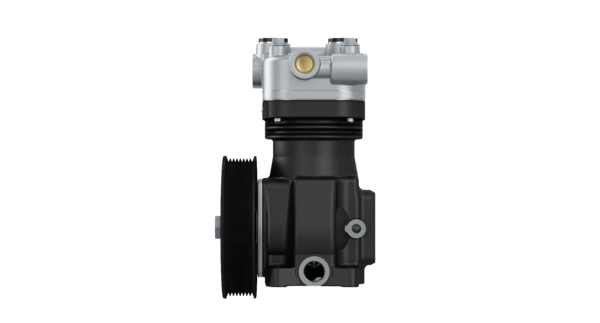

Compressor (Single Cylinder)
Part Number: 4111415520
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 7.174 |
| Comments | With pulley 4111411304 |
| Crankshaft thread | M18 x 1.5 |
| Lubrication | Lubrication supplied from engine |
| Max. operating pressure | 10.0 bar |
| Operating speed | 3000 (1/min) |
| Piston diameter | 75.0 mm |
| Piston stroke | 36 mm |
| Port thread 0 | M26 x 1.5 |
| Port thread 2 | M26 x 1.5 |
| Port thread 8.1 | M10 x 1 |
| Port thread 8.2 | M22 x 1.5 |
| Port thread 9.1 | M22 x 1.5 |
| Port thread 9.2 | M22 x 1.5 |
| Product category | Device |
| Swept volume (cm³) | 159 cm3 |
| Technical specification | OE specification |
| Type | Single Cylinder |
| GTIN | 04057875155348 |
| Size (mm x mm x mm) | 171 x 152 x 276 |
| UPC | 193133435914 |
| Weight (kg) | 11.09 |
| Weight (lb) | 24.45 |
OEM Cross References
| Brand | Reference No |
|---|---|
| KENWORTH | S4111415520 |
| MACK | 6300-4111415520 |
| MERITOR | S4111415520 |
| PETERBILT | S4111415520 |
| VOLVO | WAB4111415520 |
