Description

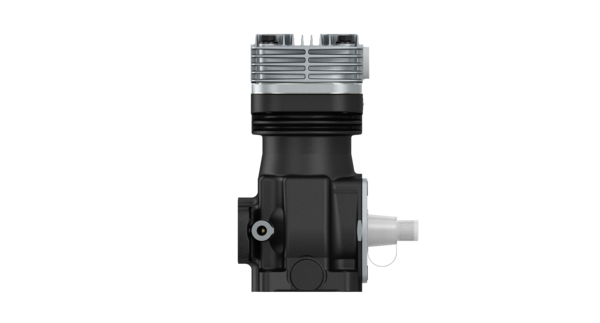

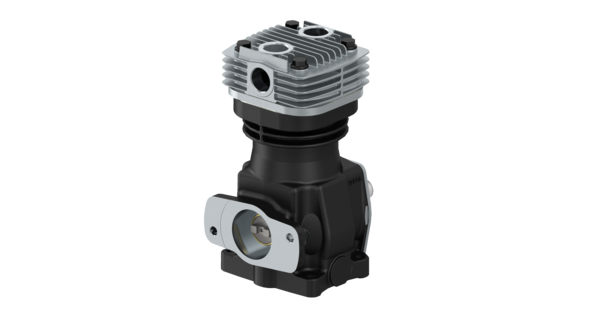

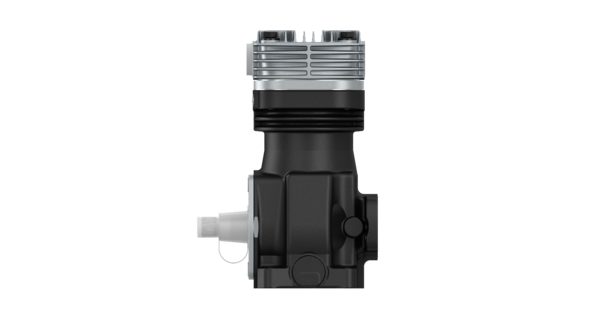

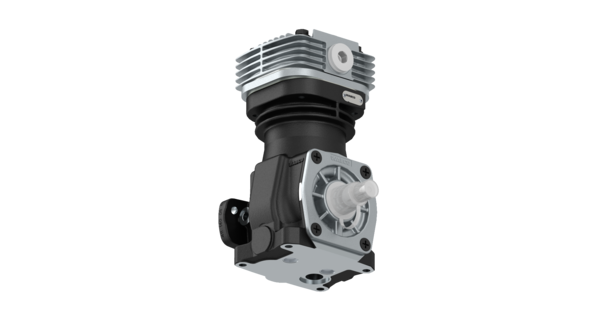

Compressor (Single Cylinder)
Part Number: 4111418180
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 15.0052 |
| Comments | Integral vickers-flange, with a 12 degree angle |
| Cooling | Air |
| Crankshaft thread | M18 x 1.5 |
| Lubrication | Lubrication supplied from engine |
| Max. operating pressure | 10.0 bar |
| Mounting | Foot mounting |
| Operating speed | 3000 (1/min) |
| Piston diameter | 75.0 mm |
| Piston stroke | 36 mm |
| Port thread 0 | M26 x 1.5 |
| Port thread 2 | M26 x 1.5 |
| Port thread 8.1 | M10 x 1 |
| Port thread 8.2 | Ø 19 mm |
| Product category | Device |
| Swept volume (cm³) | 159 cm3 |
| Technical specification | OE specification |
| Type | Single Cylinder |
| Type of operation | High pressure using unloader |
| GTIN | 7895851001626 |
| Size (mm x mm x mm) | 233 x 200 x 322 |
| UPC | 193133478287 |
| Weight (kg) | 9.275 |
| Weight (lb) | 20.448 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A0041315801 |
| MERCEDES-BENZ | 0031316301 |
| MERCEDES-BENZ | 0041315801 |
| MERCEDES-BENZ | A0041315801 |
| MERCEDES-BENZ | 0031314801 |
